Automatic Jet Grout plant for consolidation grouting in dams lean concrete
| US$35,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
LGP1200/1200/2X75/100PI-E
Type
cement grout plant
Structure
Spiral Type
Productivity
customized
Feeding Height
customized
Vibrating Amplitude
customized
Certification
ISO9001: 2000, CE, SGS
Condition
New
Color
Orange
Model
LGP1200/1200/2X75/100PI-E
Agitator Capacity
1200L
Mixer Capacity
1200L
Agitator Power
3.0Kw
Circulation pump Power
15Kw
Flow
850L/min
Water supply Tank capacity
950L
Water pump
50ZX20-30 (4.0KW)
Additive supply Tank capacity
150 L
Additive pump
25SFBX-8 (0.25KW)
Air compressor
V-0.25/8 (2.2KW)
Exhaust volume
0.25m3/min
Piston diameter
100mm
Piston stroke
150mm
Weight
3880Kg
Transport Package
Standard Export Packing
Specification
ISO9001-2008&CE
Trademark
Leadcrete
Origin
Henan China
HS Code
8474310000
Production Capacity
100 Sets/Year
Product Description
Automatic Jet Grouting Machines / Units & Mixers Product DescriptionLGP1200/1200/2X75/100PI-E automatic grouting station is a combination of a mixer, circulation pump and grouting pump. It is mainly used for making cement slurry, etc., which is applied to surface/underground construction, such as highway, railway, hydropower, construction, mining, etc.
High-speed eddy current mixer ensures fast and even mixing. Water and cement are quickly mixed into a uniform slurry. The grout is then transferred to the grouting pump, which ensures continuous mixing and grout operations. The machine is integrated with the distributor, PLC, can freely adjust the proportion of water, cement, and additives, and can be set according to the formula of automatic configuration of materials, greatly improving the work efficiency.

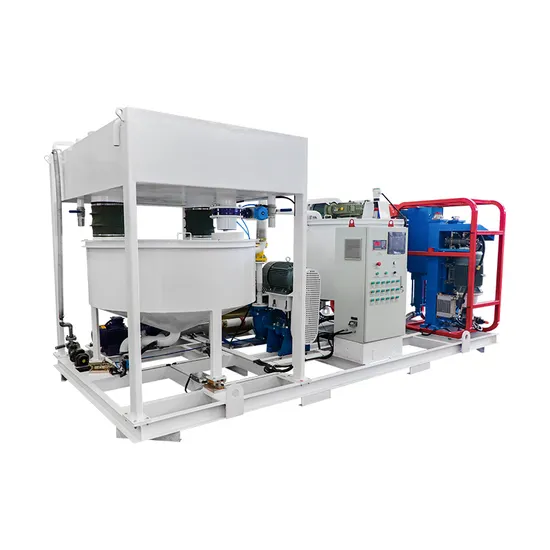

Detailed Photos
Other color matching
Our Advantages
1. Compact structure.
2. Simple operation and easy maintenance.
3. There are two operation modes: automatic mode and manual mode.
4. Less spare parts ensure low maintenance costs.
5. High speed vortex mixer ensures mix quickly and evenly.
6. The proportion of materials in the formula can be adjusted freely.
7. It can realize automatic configuration and replenishment of materials.
8. Flameproof electric cabinet, protection grade IP56.
9. With CE and ISO certification.
Product Parameters
| Name | Data | |
| Model | LGP1200/1200/2X75/100PI-E | |
| Mixer | Capacity | 1200L |
| W/C ratio | 0.5~1 | |
| Agitator | Capacity | 1200L |
| Power | 3.0Kw | |
| Circulation pump | Power | 15KW |
| Rate Rev. | 1800r/min | |
| Flow | 850L/min | |
| Screw feeder | Power | 7.5KW |
| Delivery volume | 40t/h | |
| Water supply | Tank capacity | 950L |
| Water pump | 50ZX20-30 (4.0KW) | |
| Flow@head | 20m3/h@30m | |
| Additive supply | Tank capacity | 150L |
| Additive pump | 25SFBX-8 (0.25KW) | |
| Flow@head | 2m3/h@8m | |
| Air Supply | Air compressor | V-0.25/8 (2.2KW) |
| Exhaust volume | 0.25m3/min | |
| Grouting pump (2X1set) | Model | LGH75/100PI-E |
| Piston diameter | 100mm | |
| Piston stroke | 150mm | |
| Low pressure@Flow | 0-50bar@0-75L/min | |
| High pressure@Flow | 0-100bar@0-40L/min | |
| Power | 11Kw | |
| Dimension(without screw feeder) | 4770×2250×2370mm | |
| Weight | 3880Kg | |
| Note: We can customize it according to your requirements. | ||
