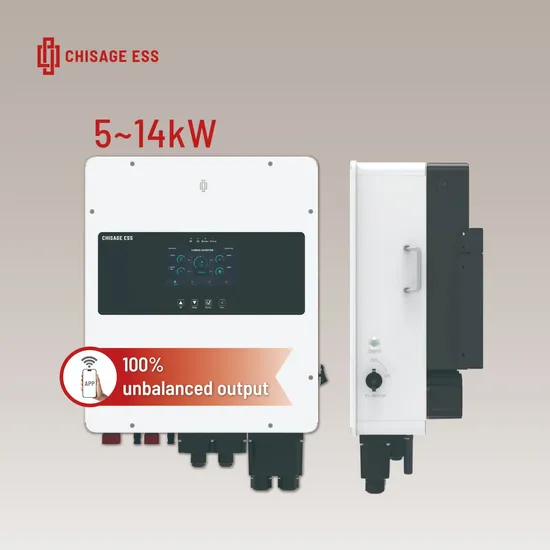

China Factory Price 5kw 6kw 8kw 10kw 12kw 14kw PV System DC AC Solar Power Triple Phase Inverter Pure Sine Wave Hybrid Inverter

Product Description

5kw 6kw 8kw 10kw 12kw 14kwcPV System DC AC Solar Power Triple Phase Inverter Pure Sine Wave Hybrid Inverter Solar inverter
less than 5ms on off grid switching time. Support different power inverters parallel connection. 20pcs paralleled in off-grid mode. Support on/off grid mode switch, EPS output
Support battery charging/discharging according to the time setting. Independent AC input port for diesel generator. Colorful 7-inch touch LCD, IP65 protection degree.
Specification

Technical Data
Model	Mars-5G1-LE Mars-5G2-LE	Mars-6G1-LE Mars-6G2-LE	Mars-8G1-LE Mars-8G2-LE	Mars-10G1-LE Mars-10G2-LE	Mars-12G1-LE Mars-12G2-LE	Mars-14G1-LE Mars-14G2-LE
Battery Input
Battery Type	Lead-acid or Li-Lon
Battery Voltage Range (V)	40~60
Max. Charge Current (A)	120	130	200	220	250	280
Max. Discharge Current (A)	120	130	200	220	250	280
Charging Curve	3 Stages / Equalization
External Temperature Sensor	Optional
Charging Strategy for Li-Ion Battery	Self-Adaption to BMS
PV String Input
Max. DC Input Power (W)	7500	9000	12000	15000	18000	20000
PV Input Voltage (V)	650 (160~800)
MPPT Range (V)	200~700
Full Load DC Voltage Range (V)	260~650
Start-up Voltage (V)	160
PV Input Current (A)	17+17			26+17
Max. PV Isc (A)	20+20			34+20
No. of MPPT Trackers	2
No. of String per MPPT Trackers	2/1	2/1	2/1	2/1	2/1	2/1
AC Output
Rated AC Output and UPS Power (W)	5000	6000	8000	10000	12000	14000
Max. AC Output Power (W)	6000	7200	9600	12000	13200	15400
Peak Power (off grid)	2 times of rated power, 10s					18000w,10s
AC Output Rated Current (A)	7.3	8.7	11.6	14.5	17.4	20.3
Max. AC Current (A)	10.8	13	17.4	21.7	26	26
Max. Continuous AC Passthrough (A)	26	26	26	26	26	26
Power Factor	0.8 leading to 0.8 lagging
Output Frequency and Voltage (V)	50/60Hz, 380/400Vac(Triple phase)
Grid Type	Three phase
Current Harmonic Distortion	THD<3% (Linear load<1.5%)
Efficiency
Max. Efficiency	97.90%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%
Protection
Integrated	PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
PV Arc Fault Detection	Optional
Output Over Voltage Protection	DC Type II / AC Type III
Certifications and Standards
Grid Regulation	CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699,C10-11
Safety Regulation	IEC/EN62109-1, IEC/EN62109-2
EMC	IEC/EN 61000-6-1,IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
General Data
Operating Temperature Range (°C)	-45~60, >45 Derating
Cooling	Smart Cooling
Noise (dB)	≤45
Communication with BMS	RS485; CAN
Weight (kg)	38	40	42	44	44	45
Dimensions (mm)	550W×730H×290D
Protection Degree	IP65
Installation Style	Wall-mounted

Why Choose Us Support storing energy from diesel generator. ARC fault detection optional.
