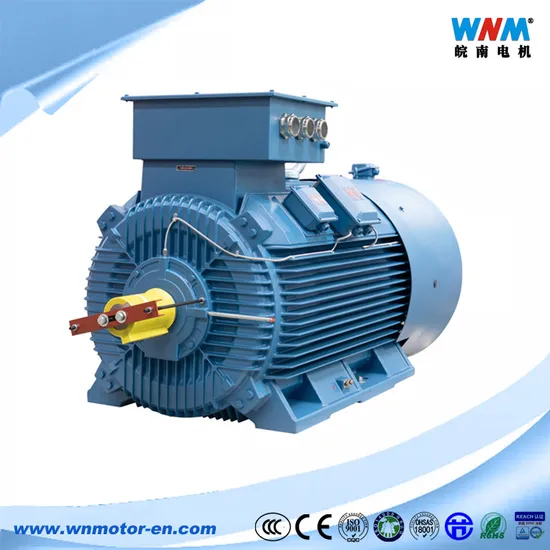

Yvf Yvp Frequency Variable Three Phase AC Electric Motor VFD Inverted Duty 5~100Hz Squirrel Cage Induction Motors 0.18~375kw

Product Description

Frequency Variable Three Phase AC Electric Motor VFD Inverted Duty 5~100Hz Squirrel Cage Induction Motors
---------------------------------------------------------------------------------------------
Applications
Widely applied in metallurgy, chemistry, textile, pharmacy, printing, packing and food industry on the machine or equipment by which adjustable speed is needed, like fan, pump, numerical control machine, machining center, etc.
General Description Frame sizes: 80 to 355 Rated output: 0.18 to 375kW Insulation class: F Voltage: 380V Efficiency levels: IE1 / IE2 / IE3 Frequency range for 2P: (3) 5-100Hz (frame size 80-250) (3) 5-70Hz (frame size 280)
(3) 5-60Hz (frame size 315-355) Frequency range for 4, 6, 8, 10P: (3) 5-100Hz Features: *Stepless speed regulation in a wide range
*Good performance, energy saving
*High-grade insulation material and special technological can withstand high frequency pulse impact
*Separated fan for forced-ventilation
*Separated fan for forced-ventilation
Optional Features:
Electrical:
Insulation Class:H
Thermal Protection: PTC Thermistor, Thermostat or PT100
Mechanical:
Others mountings
Protection Degree:IP55, IP56, IP65
Sealing:Lip seal, Oil seal
Space Heater
Drain Hole

Model	Output kW	Rated Ampere A	RPM	Eff.%	Power Factor	Rated Torque N.m	dB(A)	Constant Torque Frequency Range Hz	Constant Output Frequency Range Hz
Synchronous speed 3000r/min
YE3VF80M1-2	0.75	1.7	2855	80.7	0.83	2.51	70	5-50	50-100
YE3VF80M2-2	1.1	2.4	2870	82.7	0.83	3.66	70
YE3VF90S-2	1.5	3.2	2865	84.2	0.84	5.00	74
YE3VF90L-2	2.2	4.6	2870	85.9	0.85	7.32	74
YE3VF100L-2	3	6.0	2875	87.1	0.87	9.97	78
YE3VF112M-2	4	7.8	2910	88.1	0.88	13.1	82
YE3VF132S1-2	5.5	10.6	2935	89.2	0.88	17.9	85
YE3VF132S2-2	7.5	14.4	2930	90.1	0.88	24.4	85
YE3VF160M1-2	11	20.6	2950	91.2	0.89	35.6	87
YE3VF160M2-2	15	27.9	2945	91.9	0.89	48.6	87
YE3VF160L-2	18.5	34.2	2945	92.4	0.89	60.0	87
YE3VF180M-2	22	40.5	2950	92.7	0.89	71.2	90
YE3VF200L1-2	30	54.9	2960	93.3	0.89	96.8	92
YE3VF200L2-2	37	67.4	2960	93.7	0.89	119	92
YE3VF225M-2	45	80.8	2965	94.0	0.90	145	94
YE3VF250M-2	55	98.5	2970	94.3	0.90	177	96	5-50	50-70
YE3VF280S-2	75	134	2975	94.7	0.90	241	98
YE3VF280M-2	90	160	2970	95.0	0.90	289	98

Model	Output kW	Rated Ampere A	RPM	Eff.%	Power Factor	Rated Torque N.m	dB(A)	Constant Torque Frequency Range Hz	Constant Output Frequency Range Hz
Synchronous speed 3000r/min
YE3VF315S-2	110	195	2975	95.2	0.90	353	100	5-50	50-60
YE3VF315M-2	132	234	2975	95.4	0.90	424	100
YE3VF315L1-2	160	279	2975	95.6	0.91	514	100
YE3VF315L-2	185	323	2975	95.7	0.91	594	100
YE3VF315L2-2	200	349	2975	95.8	0.91	642	100
YE3VF315L3-2	220	383	2975	95.8	0.91	706	100
YE3VF355M1-2	220	383	2980	95.8	0.91	706	103
YE3VF355M-2	250	436	2980	95.8	0.91	801	103
YE3VF355L1-2	280	488	2980	95.8	0.91	897	103
YE3VF355L-2	315	549	2980	95.8	0.91	1009	103
YE3VF355L2-2	355	619	2980	95.8	0.91	1138	103
YE3VF355L3-2	375	654	2980	95.8	0.91	1202	103
Synchronous speed 1500r/min
YE3VF80M1-4	0.55	1.4	1430	80.6	0.75	3.67	62	5-50	50-100
YE3VF80M2-4	0.75	1.8	1425	82.5	0.75	5.03	62
YE3VF90S-4	1.1	2.6	1420	84.1	0.76	7.40	64
YE3VF90L-4	1.5	3.5	1420	85.3	0.77	10.1	64
YE3VF100L1-4	2.2	4.8	1430	86.7	0.81	14.7	68
YE3VF100L2-4	3	6.3	1430	87.7	0.82	20.0	68
YE3VF112M-4	4	8.4	1450	88.6	0.82	26.3	72
YE3VF132S-4	5.5	11.2	1465	89.6	0.83	35.9	76
YE3VF132M-4	7.5	15.0	1465	90.4	0.84	48.9	76
YE3VF160M-4	11	21.5	1470	91.4	0.85	71.5	79
YE3VF160L-4	15	28.8	1470	92.1	0.86	97.4	79
YE3VF180M-4	18.5	35.3	1470	92.6	0.86	120	83
YE3VF180L-4	22	41.8	1465	93.0	0.86	143	83
YE3VF200L-4	30	56.6	1475	93.6	0.86	194	85
YE3VF225S-4	37	69.6	1480	93.9	0.86	239	88
YE3VF225M-4	45	84.4	1480	94.2	0.86	290	88
YE3VF250M-4	55	103	1485	94.6	0.86	354	92
YE3VF280S-4	75	136	1490	95.0	0.88	481	94
YE3VF280M-4	90	163	1485	95.2	0.88	579	94
YE3VF315S-4	110	197	1485	95.4	0.89	707	96		50-75
YE3VF315M-4	132	236	1485	95.6	0.89	849	96
YE3VF315L1-4	160	282	1485	95.8	0.90	1029	96
YE3VF315L-4	185	326	1485	95.9	0.90	1190	96
YE3VF315L2-4	200	352	1485	96.0	0.90	1286	96

Specifications of cooling blower and brake for the motor

Motor	Frame	80	90	100	112	132	160	180	200	225	250	280	315	355
Cooling Fan	(W) Power	30	42	52	55	55	80	80	150	200	230	320	700	700
	(A) Current	0.09	0.16	0.18	0.18	0.19	0.26	0.30	0.6	0.6	0.6	1.1	1.8	1.9
	Voltage	Standard 380V, but blower of other voltage can be customized depending on user's requirement.
Encoder Optional	Incremental Encoder

Mounting Type:
Conventional mounting type and suitable frame size are given in following table(with "√")

Frame

basic type

derived type

B3

B5

B35

V1

V3

V5

V6

B6

B7

B8

V15

V36

B14

B34

V18

80~112

√

√

√

√

√

√

√

√

√

√

√

√

√

√

√

132~160

√

√

√

√

√

√

√

√

√

√

√

√

-

-

-

180~280

√

√

√

√

-

-

-

-

-

-

-

-

-

-

-

315~355

√

-

√

√

-

-

-

-

-

-

-

-

-

-

-

If there is no other request in the order or agreement, terminal box standard position is at the right side of the frame; data above may be changed without prior notice.
