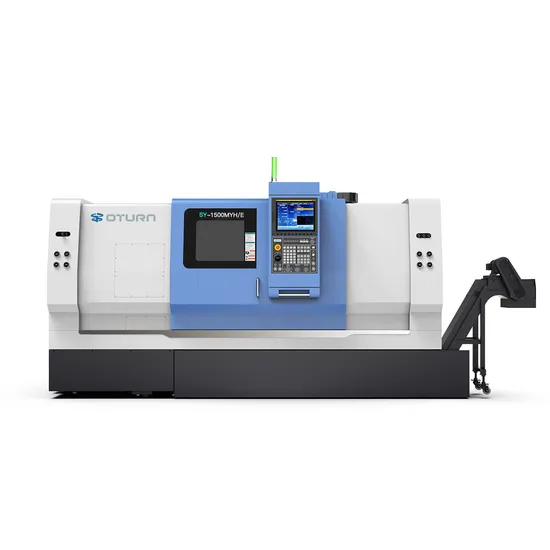

High Precision CNC Metal Turret Turning Lathe with Y Axis

Product Description

Product Description
The machine adopts an optimized 30-degree inclined bed structure design, featuring high precision, exceptional rigidity, and unparalleled cutting stability. Constructed with high-strength HT300 cast iron in a one-piece robust bed structure, it utilizes finite element analysis to ensure superb mechanical rigidity and long-lasting stability. This guarantees reliable precision over extended periods, enhancing processing stability and tool longevity. The stress relief treatment further augments precision stability. The high-strength hard rail structure, combined with a screw pre-tensioning design in the transmission system, significantly boosts rigidity performance. Main features of this machine tool: 1. The spindle unit is an independent sleeve type, having undergone stringent dynamic balance tests, ensuring high precision, excellent retention of precision, minimal thermal deformation, and superior thermal stability. Capable of reaching speeds up to 2500rpm, the nose deflection accuracy is within 0.003MM. The front end of the shaft uses a large-diameter, high-precision double-row roller bearing paired with an oblique contact ball bearing structure. This optimal two-point balanced support design withstands radial and axial loads, enabling both high-speed precision cutting and low-speed heavy cutting. It's especially suited for mass-producing complex, high-precision, and high-finish products. 2. High rigidity servo power turret. This feature allows for rapid and precise tool change performance, combined with high-speed power shaft milling capabilities to achieve extraordinary turning and milling processing performance. The tool holder is equipped with a high-rigidity BMT installation interface, and the power transmission shaft is driven by a servo spindle motor. 3. The machine tool is equipped with hard rail guide rails and ball screws. The heat-treated and precision-ground ball screws ensure optimal performance. Providing excellent precision and durability, each axis features a direct transfer axis structure and a double anchor pre-relay method, effectively minimizing thermal displacement and significantly enhancing machining accuracy. 4. This machine offers a comprehensive hydraulic and lubrication system, incorporating high-quality hydraulic pumps and valves, which substantially reduces the failure rate. The system's design is straightforward and reliable, with centralized quantitative automatic lubrication. 5. The hydraulic tailstock boasts a high-rigidity integral structure, eliminating vibration and providing exceptional stability. The sleeve's expansion and contraction are hydraulically controlled, ensuring convenience, speed, and reliability. 6. Featuring a Taiwan rotary chuck oil cylinder and an optional automatic chip removal device, this machine significantly reduces operator labor intensity, ensuring safe and efficient production. All functional components are programmable for streamlined operation and special fixture applications.
Product Parameters

Name	Unit	SY1500MH/E
Max. swing diameter over bed	mm	Φ640
Max. processing diameter	mm	Φ460
Max. swing diameter over cross slide	mm	Ф350
Max. processing length	mm	1500
Spindle nose	/	A2-8
Spindle bore diameter	mm	Ф87
Bar diameter	mm	Ф75
Max. spindle speed	rpm	2500
Spindle motor power	kw	26KW
Motor torque pulley ratio; 1:1.5	Nm	372/529
X/Z travel	mm	300/1550
X/Z Specification of shaft guide		Box way
X/Z Shaft motor torque	Nm	18.6
X/Z motor power	KW	2.9/2.9
X/Z axis moving fast	m/min	20/20
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
Power turret	/	BMT65-12/ER32
Power turret motor	Kw	5.0/7.5
Max. speed of power tool holder	rpm	5000
The specification of outer diameter tool holder	mm	25x25
The specification of inner diameter tool holder	mm	Ф50
The adjacent tool change time	sec	0.38
Programmable hydraulic tail seat		Hydraulic
The biggest stroke of the tail	mm	1530
Morse Slideway	type	Mosh5#
Sleeve diameter	mm	Ф100
Sleeve travel	mm	80
Machine size	m	4850*2300*2100
Machine Weight	kg	7500
Cutting fluid tank volume	L	250
Cutting water pump	kw	0.75
Hydraulic unit box volume	L	40
Hydraulic oil pump motor power	kw	1.5
Lubricant tank volume	L	2
Automatic lubrication pump motor power	W	50
