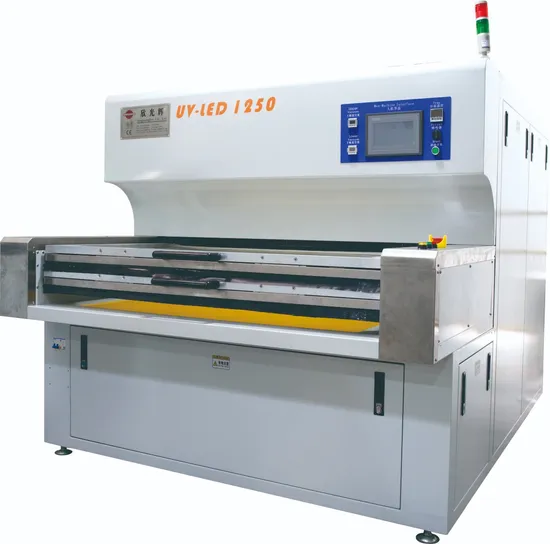

LED Exposure Machine PCB Machine UV LED
| US$18,500.00-21,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
UVLED-L900
Usage
Semiconductor, Microelectronics
Type
Plate Exposure
Page
Double Faced
Automatic Grade
Manual
Product Type
Machine
Proximity Exposure
Hard Contact
Feature Size
2mil
Weight
900kg
Power
AC220V
Maximum Machining Size
650*900mm
Minimum Machining Size
50*50mm
Transport Package
Standard Package, Wooden Package, Vacuum Package
Specification
L1450*W2900*H1700mm
Trademark
xinguanghui
Origin
Shenzhen
HS Code
8486309000
Production Capacity
500sets
Packaging & Delivery
Package Size
165.00cm * 310.00cm * 195.00cm
Package Gross Weight
1000.000kg
Product Description
Product Description Line Exposure Machine| Model number: | UVLED-L900 |
| Exposure light source: | High-power ultraviolet LED array lamp set |
| Alignment uniformity: | More than 90% |
| Exposure way: | Namely bright control |
| Exposure select: | Single / double-sided exposure |
| LED lamp life: | ≥three years |
| Vacuum device: | Oil-free vacuum pump, vacuum degree of 90 kpa |
| Cooling-down method | Forced air cooling type |
| Exposure energy control: | duration control |
| Effective exposure area: | 900mm*650mm |
| Resolution : | 1,2mil,thickness of dry film ≤20um; 2,3mil,thickness of wet film≤20um,thickness of dry film≤40um |
| Mesa structure | Merra membrane + optical glass |
| control system: | Japanese omronPLC + HMI control |
| Operation interface: | Chinese and English pictures, 4 groups of exposure time selection, exposure power 10% -100% infinite adjustable |
| Major structure: | Standard board electrostatic spraying paint |
| Safe guard : | Abnormal emergency stop, overtemperature protection, overcurrent protection, short-circuit protection, leakage protection |
| Electricity demand: | AC220V 50Hz 3KW single phase |
| Environmental requirements: | Temperature 22-25ºC,humidity 55-60%,Dust-free requirements for level 10,000 |
| Outline dimension: | L1450*W2900*H1700mm |
| Weight of equipment: | 900KG |
| Equipment advantage: | 1, add secondary optics, parallel optical structure, good exposure accuracy, high yield.. |
| 2, equipped with light gate to prevent ultraviolet leakage, protect the health of operators. | |
| 3, copper-based PCB light board, good heat dissipation, high lamp source life. | |
| 4, Korea LG / SVC imported high-power UV LED, high light efficiency, long life and stable performance. | |
| 5, Japan omron program controller, Japan Panasonic sensor, to ensure the equipment. | |
| 6, equipped with Taiwan high-power oil-free vacuum pump, high vacuum degree, will not produce secondary pollution. | |
| 7, the disassembly frame design structure, the replacement more quickly. | |
| 8, use the intelligent touch screen and PLC automatic control program, all Chinese display. |
