300A Bus Bar Heavy Duty Power Distribution Block Busbar Box Module Design with 4X M8 (5/16") Terminal Studs for Car RV Boat

300A Bus Bar Heavy Duty Power Distribution Block Busbar Box Module Design with 4X M8 (5/16") Terminal Studs for Car RV Boat

US$20.00
1-19 Pieces
US$18.50
20-99 Pieces
US$17.50
100+ Pieces

Basic Info.

Model NO.
BB300-T4M8-C
Connection Mode
Screw
Shape
Rectangle
Contact Termination Form
Screws Fixed
Type
Big Current
Character
Big Current
Production Process
Brass
Interface Type
Other
Brand
Daier
Transport Package
1PCS/Bag
Specification
138 x 69 x 44.5mm(5.433"x2.72"x1.75").
Trademark
Daier
Origin
Zhejiang

Product Description

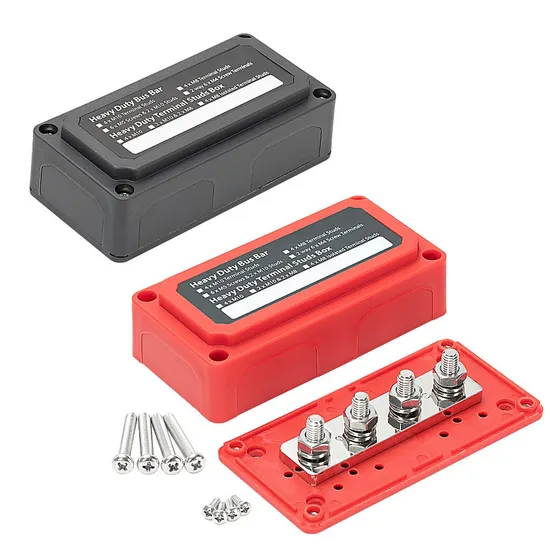

4 Stud 300Amp Heavy Duty Bus Bar
* Heavy Duty Design- Max Voltage: 48V DC; Max Continuous Currents: 300 Amps.
* Wide Applications- The power distribution block is useful for customizing vehicles or relocating batteries. Applicable to
12-48V car, trucks, RVs, marine, boats and other industrial equipment.
* High Quality- Bus Material: The bar is made of brass and nickel plated, which is sturdy and rust-resistant. The base is made
of nylon - glass fiber reinforced to protect your safety, ensures great mechanical strength and durability.
* Dimensions- The battery junction block is measured (L x W x H): 138 x 69 x 44.5mm (5.433"x2.72"x1.75"). Stud size: 4X M8 (5/16").
* Easy to Mount- Surface screw fixed installation, four mounting holes make this terminal block easier to be mounted in any
orientation.Removable windows for unobstructed wiring.1. Highest amperage rated bus bar (300A). With M8( 5/16") terminal studs2. Module box design for easy wiring configurations.3. Glass Fiber reinforced Nylon base and enclosure ensures great mechanical strength and durability.4. Removable windows for unobstructed wiring.5. Blank write-on space on the top allows easy labeling for each branch. Working Voltage and Package List:1. Max Amperage: 300 Amps at 12V DC per connection.2. Max Voltage: 48V DCPackage Includes:M8 terminal studs and CoverWhat is the 300A Bus Bar Fit for?The heavy duty 300 Amp Busbar is perfectly fit for your marine, boat, yacht, RV ,car, trucks, tractor, ATV etc.
