Basic Info.
Model NO.
DMNS-300/DMNS-350/DMNS-400/DMNS-500.
Automatic Grade
Semi-Automatic
Voltage
220V/380V/Customized
Dimension(L*W*H)
720*680*1570mm
Suitable for
Pig Beef Sheep Fresh Meat
Keywords
Processing Machine
Product Name
Electric Bone Saw Cutting Machine
Transport Package
Standard Export Wooden Case
Specification
Machine material: 304 stainless steel
Production Capacity
60 Pieces/Month
Packaging & Delivery
Package Size
82.00cm * 78.00cm * 167.00cm
Package Gross Weight
168.000kg
Product Description

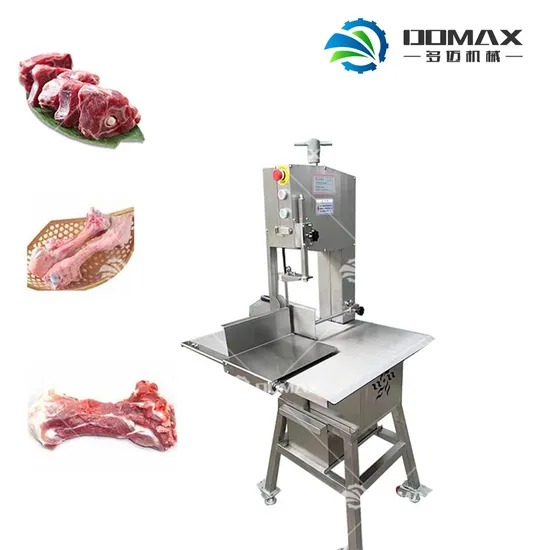

Vertical Meat Bone Butcher Waterproof Stainless Steel 430 Meat Slicer Bone Saw Machine
Product Description
Introduction if Bone Sawing Machine Flat body design, stainless steel cover plate, in line with food hygiene and easy to clean; stainless steel machine door, special surface treatment, easy to clean and maintain; saw belt pressure tensioning device, easy to install and adjust the saw belt; saw belt stabilization device, the saw belt is stable and will not wander during sawing. The thickness adjustment plate is reinforced to facilitate the adjustment of processing thickness and will not shake when moving. It is equipped with a safety pressure rod design to improve work safety. The machine is waterproof, easy to clean, safe and hygienic. High horsepower. It has the advantages of compact structure, beautiful appearance, simple operation, high efficiency, low power consumption, easy cleaning and maintenance, and good bone sawing effect.
Product Parameters
Model
| DMNS-300
| DMNS-350
| DMNS-400
| DMNS-500
|
Saw Blade Size
| 2120*12mm
| 2400*16mm
| 2810*16mm
| 3400*19mm
|
Saw Blade Speed
| 12m/s
| 14m/s
| 16m/s-20m/s
| 37-61m/s
|
Cutting Width
| 23cm
| 23cm
| 32cm
| 40cm
|
Cutting Height
| 30cm
| 35cm
| 40cm
| 50cm
|
Power
| 1.5kw
| 1.5kw
| 2.2kw
| 3kw
|
Voltage
| 220v/380v
| 220v/380v
| 220v/380v
| 220v/380v
|
Machine Size
| 720*680*1570mm
| 790*800*1670mm
| 850*850*1730mm
| 1070*1020*2020mm
|
Workbench Size
| 500*770mm
| 620*750mm
| 800*730mm
| 1050*950mm
|
Weight
| 128kg
| 150kg
| 220kg
| 260kg
|
Product Application
Application of Bone Sawing Machine The activity workbench is convenient for work, and the whole machine is made of food grade stainless steel, which is specialized in cutting bones, ribs, frozen meat, fish, and large meat. The product uses the original imported saw blade, which has a good factor of safety and can be directly disassembled for washing without dead corners. The saw belt has an over tight hold and the motor has an overheat hold, so it is really safe, sanitary and convenient.
