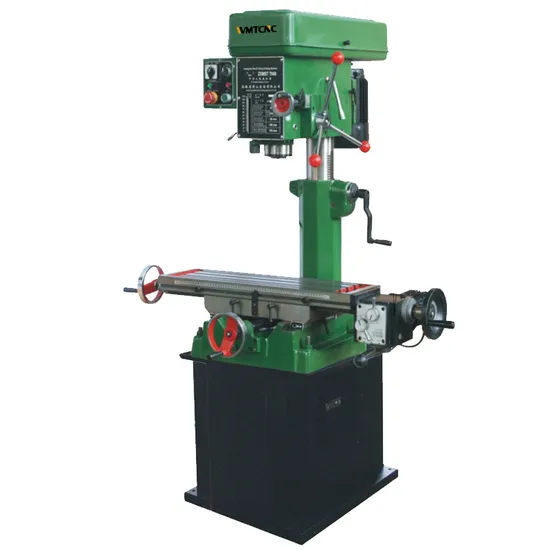

Bench drill press ZXMST7040(Z) drilling and milling machine

Bench drill press ZXMST7040(Z) drilling and milling machine

US$1,800.00 1 Set (MOQ)

Basic Info.

Model NO.
ZXMST7040(Z)
Structure
Mill Drilling Machine
Layout
Horizontal
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
40mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Motor
1.5kw
Spindle Taper
MT.4
Spindle speeds
216-340-494-550-712-770-1100-1680-2730rpm
Size of worktable
730x210mm
Transport Package
Ply-Wood Case
Specification
100x78x103.5cm
Trademark
WMTCNC or customized logo
Origin
China, Anhui
HS Code
8461202000
Production Capacity
200 Sets/Month

Product Description

Product Description
Milling and Drilling Machine ZXMST7040(Z)
Model
ZXMST7040(Z)
Max. Drilling capacity(mm)
40
Max. Horizontal milling diameter(mm)
100
Max. Veitical milling capacity(mm)
20
Max.tapping capacity(mm)
M20/M16
Max.horizontal grinding wheel diameter(mm)
150
Max. Spindle travel(mm)
110
Morse taper of spindle nose
MT.4
Spindle speeds(r/min)
216-340-494-550-712-770-1100-1680-2730
Distance from spindle axis to column surface(mm)
235
Size of worktable(mm)
730x210
Max. travel of worktable(mm)
480x230 (410x230)
Distance from spindle nose to worktable(mm)
218-568
Motor(kw)
1.5
G.W/N.W(kg)
440/370
Ship measurement(cm)
98x106x 121.5

Detailed Images
Company Profile
Customers' Feedback
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
