ZICAR High Precision Wood Aluminium Acrylic Cnc atc Router Machinery For Wood Doors

Product Description

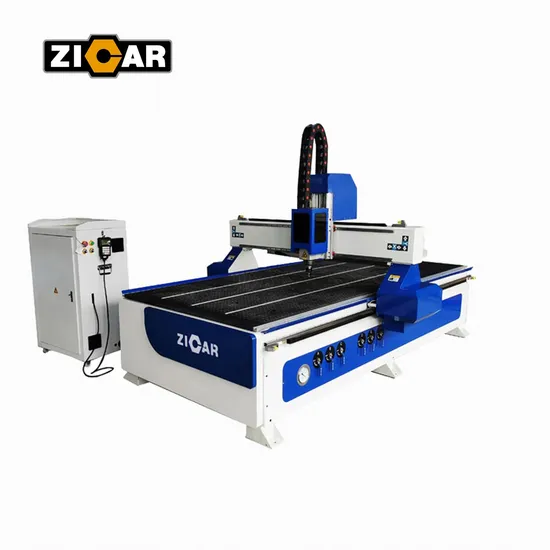

CNC Router CR1325
Features
1.Taiwan linear guide rail adopts imported linear square orbit, loading capacity, smooth running, keep high accuracy.
2.DSP control system which with USB connection operated with the handle, convenient operation.
3.Adopt high speed drivers. Max speed is 25M/min, with spindle highly upgrade the processing speed.
Specifications:

X Working Area	1300mm
Y Working Area	2500mm
Z Working Area	200mm
Traveling Positioning Accuracy	±0.05mm
Repositioning Positioning Accuracy	±0.05mm
Table Surface	T-slot aluminum working table
Body structure	Steel structure with six legs
X,Y ,Z Structure	German gear wheel for XY axis, Taiwan TBI ball screw for Z axis
Max. Power Consumption(Without spindle)	1.84KW
Max. Working Speed	25000mm/min
Spindle Power Motor	3.0KW water Cooling spindle made in China
Spindle Speed	0-24000r/min
Drive Motor	stepper motor&Leadshine driver
Inverter	3.7KW inverter
Command	G-code*.u00*.mmg*.plt
Working voltage	AC220V/380V 50/60Hz
Control System	NCSTUDIO controller system
Guide rail	20mm square guide rail for XYZ axis;
Oiling system	Manually oiling
Control cabinet	Independence cabinet
Dust collector	3.0kw dust collector
Applicable material	Wood,plywood,acrylic,metal,aluminum,brass,glass etc

Detailed Photos
Application Field
The machine is widely used in furniture processing industry, home decoration, wooden doors manufacturing.
Applicable industry: wood furniture, wooden crafts processing industry, suitable for large panel cutting and large relief carcving products.
Applicable material: solid wood panel, artificial board, acrylics, PVC, MDF and so on.
Packaging & Shipping
Company Profile
FAQ
The more you know us, the more you trust us!
1.Our Payment Way?
L/C and T/T or other ways.
2.Delivery Time?
30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have
closely relationshipwith each other,so there is no problem in shipment.
3.Our Warranty?
(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.
(2)We will be responsible for the maintenance of damaged part which is under normal situationduring warranty period, and all the
round-trip courier transportation cost of damaged/repairedreplacement parts in warranty period should be borne by the buyer.
Wearing parts are notincluded.
(3)24 hour technical support by email or calling
(4)User-friendly English manual for machine using and maintaining
4.Our srvices?
(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.
(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.
(4)After sale Service: experienced and knowledgeable team of technical support , provideengineer oversea service.
