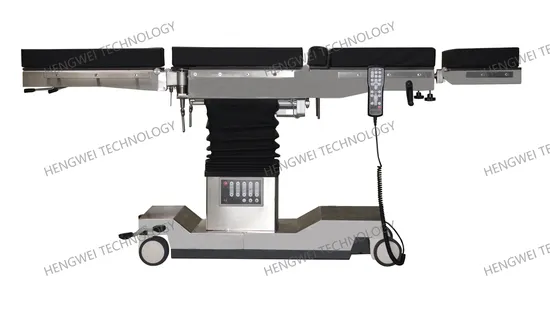

Electric Multi-Functional Orthopedic Surgical Operating Tablec-Arm Available X-ray Available Orthopedics Table

Electric Multi-Functional Orthopedic Surgical Operating Tablec-Arm Available X-ray Available Orthopedics Table

US$2,000.00-2,100.00 1 Piece (MOQ)

Basic Info.

Model NO.
HW-503-E
OEM/ODM
Available
Warranty
12month
Certificate
ISO13485,ISO9001
Control Mode
2
One Key 0 Position
Available
Emergency Stop Switch
Available
Storage Battery
Optional
Transport Package
Wooden Case
Specification
1.39*0.72*0.95=0.95 Gross weight: 235kgs, Net we
Trademark
HENGWEI
Origin
Harbin
HS Code
9402900000
Production Capacity
1000pices/Year

Product Description


Technical Parameter:
Demension 2100*500mm
Height Adjustment (electric) 680-980mm
Trendelenburg adjustment (electric) ±30°
Lateral Tilt adjustment (electric) ±20°
Back Section adjustment (electric) +75°/-30°
Head Board adjustment (manual) +45°/-90°
Leg Board adjustment (air spring) +30°/-90°
Build-in Kidney Elevator adjustment (manual) 0-120mm
Table Top Longitudinal Moving(electric) 300mm
Controller one is hand controller, the other is on column



Characteristics
This table is suitable for general and orthopaedic operation.
It has longitudinal moving 300mm function, very conveniment for X-ray examination adn C-arm photograph on diffierent parts of body.
It adopts famous brand motrors, smooth and slient operation.
The height adjustment,back section, trendelenburg,lateral adjustment, moving 300mm are all controlled by motors.
The head is manual adjustment and leg section are air spring adjustment.
Made of full premium 304 stainless steel.
Double controller system, one is hand remote controller, the other is on column.
It also has one key 0 position function.
Standard Accessories:
1.Shoulder supports:2pcs
2.Waist supports:2pcs
3.Arm supports:2pcs
4.Leg supports:2pcs
5.Anesthetic screen frame:1pc
6.Mattress:1pc
7.Hand controller: 1pc
8.Power line: 1pc
Finished Order Show &Successful Case
Package Pic
Company Profile HENGWEI Technology was established in 1999. It is a research and development manufacturer of medical equipment such as operating table, gynecology bed, ophthalmology table, medical light medical pendant, hospital bed, and other medical equipment. Hengwei is a medical equipment manufacturer that integrates scientific research, development, and production. It has won the praise of the majority of customers with advanced production equipment, dozens of professional technicians, high-quality product quality. Hengwei has always adhered to the purpose of "living with quality, developing with integrity" as the company's purpose, providing customers with high-quality products and services, sincere cooperation, joint efforts, and building a medical enterprise's outstanding brand.
Factory Show
