Basic Info.
Available Wire Dia
5.0-10mm
Winding Inner Dia
90-200 (Can Adjust )
Air Pressure Range
0.4-0.55MPa
Bundling Diameter
Not Greater Than40mm
Reserved Head Length
250-300mm
Reserved Tail Length
300-400mm
Transport Package
Wooden Box
Specification
2500*1100*1850mm
Production Capacity
300-380PCS/H (Cutting Length Is 1-5m)
Product Description
Product Parameter

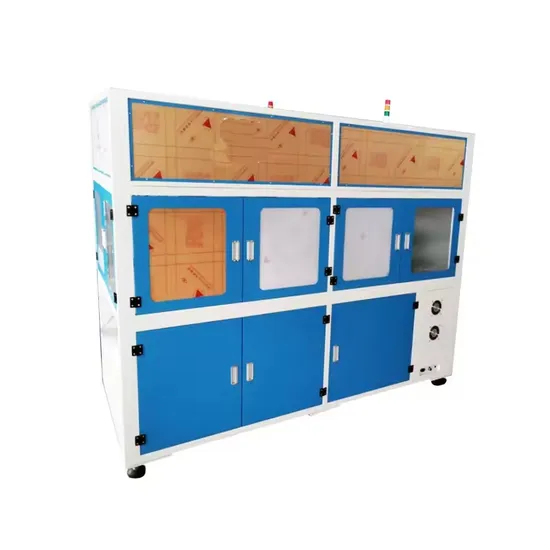

SA-CR0B-02MH is a full automatic machine for cutting stripping winding tying cable for 0 shape,cutting and stripping length can be set directly on the PLC screen. Coil inner diameter can be adjust , Tying length can be set on machine .This is full automatic machine that not t need people to operate . It Greatly Improves cutting winding speed and saves labor cost.
Features:
1.Automatically metering cutting , stripping coil and binding machine .
2.Winding circles and tying twice, and the stripping of both ends.
3.High performance, speed can reach 600 pcs / hour, saving labor
4.Automated large screen PLC touch screen control circuit, easy to operate, good work stability
5.The finished product after winding is beautiful, generous, tidy and easy to pack
6.Humanized design reduces workers' fatigue
7.Adopt a full set of imported original AirTAC cylinder 8. Suitable for Hot wire, underfloor heating cable, audio/video cable,sensing cable, DC cable, USB cable, sheathed cable
Model | SA-CR0B-02MH |
Available Wire Dia | 5.0-10mm |
Finished Coil Type | Round shape, two tying ties |
measure method | Cutting length directly setting on screen |
Stripping Length | 20-80mm |
Winding Inner Dia | 90-200 (Can adjust ) |
Reserved Head Length | 250-300MM |
Reserved Tail Length | 300-400MM |
Bundling Diameter | ≤ 40mm |
Production Rate | 300-380pcs/h ( Cutting length is 1-5M) |
Main motor | Three sets of servo motors for winding , pickup wire and up and down Translating |
Cylinder | AirTAC brand cylinder |
Cable Tie | Encapsulated iron core, coreless |
Air Connection | 0.4-0.55MPa |
Power Supply | 110/220VAC,50/60Hz |
Dimensions | 2500*1100*1850mm |
Note: Can be customized according to customer demands. |
