US$33,500.00-45,000.00
|
1 Set
(MOQ)
|
Basic Info.
Transport Package
Wooden Pallets or Wooden Boxes
Product Description

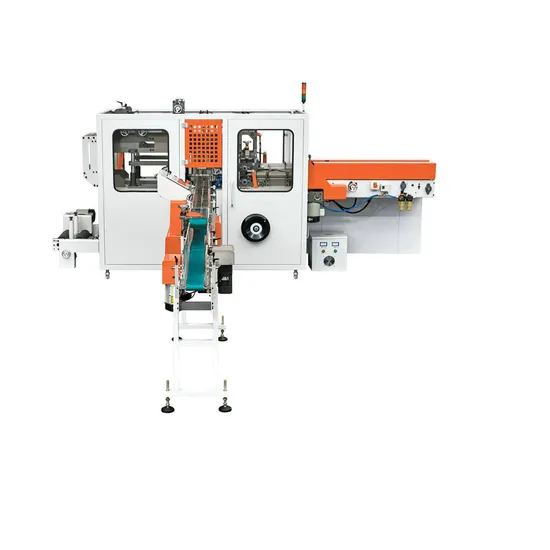

XY-BT-298 automatic tissue wrapping machine
Machine main features:
1. BT-298 high speed fully automatic facial tissue single wrapping machine is suitable for automatically packing V fold hand towel, facial tissue and napkin.
2. Tissue arraying and feeding adopt variable frequency control modes.Packaging film hole punching,film pulling & position,film cutting off,tissue center sending and other actions are controlled by servo motors.This machine has advantages of complete operation configuration,high working efficiency, easy to operation,wide sizes application range,quickly for size changing,easy to maintenance and low cost for using etc.
3. Basic operation function configuration:Has functions of Auto tissue shaping,auto tissue speed detection and speed decline,auto alarm and stop for twin tissue feeding or get stuck,auto detection for tissue height,alarm and stop when height error,auto detect for film roll volume,auto alarm and strop when film release unit get stuck,tissue hook shaping,inching operation,link operation etc.
4. Max. stable production speed is 100 packs/min.
Technical parameter and features:
Features | Description |
Paper sorting mode | Automatic Smart Feeding |
Paper sorting mode | 105packs/min |
Stable production speed | ≤100 packs/min |
Packaging film changing | ≤2min |
Paper length | 95-210mm |
Paper height | 35-100mm |
Paper width | 95-150mm |
Mould | 3 sets |
Machine dimension | Length 4650 mm Width 3650 mm Height 1800 mm |
Machine weight | ≤ 3500 KG |
Packaging material | PE,BOPP,CPP etc |
Film thickness | 0.035mm-0.05mm |
Max.film roll diameter | 500mm |
Film core diameter | 76mm |
Max.film width | 340mm |
Compressed air | Pressure air≥ 0.5MPA |
Power supply | 380V/50HZ |
Total power consumption | 6 KW |
Detail pictures:
