Vacuum Emulsifying Machine Homogenizer for Cosmetics Cream Sanitary Stainless Steel Vacuum Homogenizer

Vacuum Emulsifying Machine Homogenizer for Cosmetics Cream Sanitary Stainless Steel Vacuum Homogenizer

US$9,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
YD-VEM
Application
Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid
Application Area
Cosmetic / Food / Pharmaceutical
Certification
CE, ISO
Condition
New
Main Material
Stainless Steel
Mixing Drum Shape
Disc
Stirring Type
Spiral
Warranty
1 year
Working
High Speed Mixer
Heating Way
Electric Heating / Steam Heating
Control Panel
Button Control / PLC
Homogenizer
Top Homogenizer / Bottom Homogenizer
Volume
50-5000L
Pot Cover
Sealing Cover / Hydraulic Lift Cover
Raw Material Feeding
Vacuum Feeding / Manual Feeding
Stirring Paddle
Planetary Mixing
Polish
300m
Pot Thickness
4-10mm
Mixer Type
Homogenizer
Layout Type
Horizontal
Operating type
Continuous Operating
Transport Package
Plywood Case
Specification
Customized
Trademark
YODEE
Origin
China
HS Code
8479820090
Production Capacity
1000 Set Per Year

Product Description

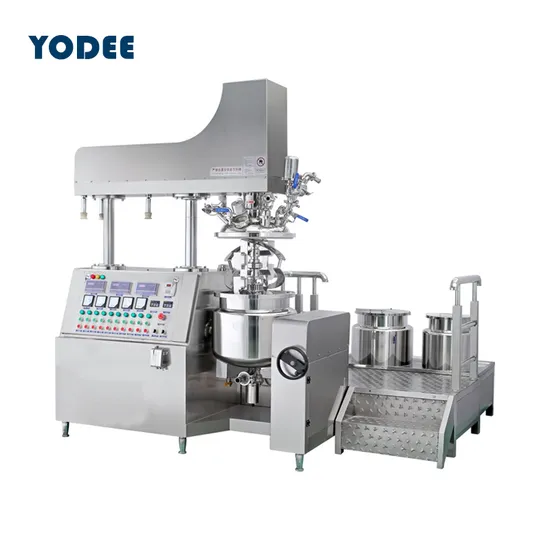

Vacuum Emulsifying Machine Homogenizer for Cosmetics Cream Sanitary Stainless Steel Vacuum Homogenizer
The vacuum homogeneous emulsifier rotates at high speed through the homogenizing head connected to the engine to shear, disperse and impact the material in a vacuum state, quickly and evenly distribute one or more phases into another continuous phase. The strong kinetic energy of the mechanical force is used to make the material in the narrow gap between the stator and rotor, and withstand hundreds of thousands of hydraulic shears per minute, it is always subjected to centrifugal force, extrusion, impact, tearing and other comprehensive effects instantly and evenly. Disperse and emulsify the material to form a water-in-oil and oil-in-water state, and finally obtain a high-quality product without bubbles, delicate and stable.
Function
1. 0-63r/min stepless frequency conversion speed regulation, the stirring speed can be adjusted.
2. Homogenizer adopts the USA ROSS Brand technology structure, 0-3300R/MIN stepless frequency conversion speed regulation.
3. Three layers of thickened pot body interlayer, steam heating and electric heating can be selected to suit different scenarios.
4. Using negative pressure 0.09Mpa vacuum function, with German mechanical sealing technology, so that the inside of the pot can reach a vacuum state for a long time, so that the material can be fully produced in a vacuum state.
5. The lifting system is reasonably used to improve production efficiency and effectively avoid secondary material pollution.
6. Set the raw material pretreatment pot (oil pot, water pot), which can effectively improve the production efficiency by 60%.
Application
The vacuum homogenizer emulsifying mixer is applied to any materials that need stirring, homogenizing, pulverizing, suspending and dissolving, such as emulsion and mucilage, to meet the technological requirements of different products. It is widely used in cosmetics, daily chemicals, pharmaceuticals, biomedicine, food etc.
Optional Configuration Reference
Remark: The structure and configuration of the vacuum homogeneous emulsifier are diverse and varied, it can be combined according to the customer's products. It is a non-standard customized product.
Parameter
Small Capacity parameter reference:
Capacity Homogenizer Motor(KW) Stirring Motor(KW) Vacuum Pump(KW) Water Pot Stirring(KW) Oil Pot Stirring(KW) Water Pot Heating(KW) Oil Pot Heating(KW)
15L 0.75 0.37 0.18 0.18 0.18 2 2
25L 1.1 0.37 0.18 0.18 0.18 2 3
50L 2.2 0.75 0.81 0.55 0.55 6 3
100L 4 1.5 0.81 0.55 0.55 9 6
150L 4 2.2 1.5 0.55 0.55 12 6
200L 5.5 3 1.5 0.55 0.55 12 9

Large Capacity parameter reference:
Capacity Homogenizer Motor(KW) Stirring motor(KW) Vacuum pump(KW) water pot stirring(KW) oil pot stirring(KW) water pot heating(KW) oil pot heating(KW)
250L 5.5 2.2 1.5 0.55 0.55 12 9
300L 5.5 3 3 0.75 0.75 18 9
400L 7.5 4 3 0.75 0.75 18 9
500L 11 4 3 1.1 1.1 18 9
1000L 15 5.5 3.85 1.5 1.5 27 18
2000L 18.5 7.5 3.85 2.2 2.2 36 27
3000L 22 11 11 3 3
5000L 37.5 15 11 5.5 5.5

Customized Machines Provide Design Drawings
Engineering Case
About Yodee
After-sale Service
1. YODEE products will provide a one-year machine warranty service, and accessories will be replaced free of charge.
2. YODEE will provide lifelong machine technical support and technical support services for the later transformation of the old factory.
3. YODEE will provide engineers to guide the installation of equipment and equipment maintenance training services at the customer's factory if necessary.
4. YODEE can accept customer engineers to Chinese factories for equipment training.
Shipment Service
1. If you have a transportation agent, you can directly arrange to come to our company to pick up the goods.
2. If you do not have a transportation agent yet, YODEE will provide you with different ways of machine transportation services (sea, air, express, rail transportation) according to different situations for choice.
3. Under special circumstances, if the machine exceeds the shipping size of the container, YODEE will still plan and provide you with the best shipping plan for you to choose. Remark
All machine can provide customized service, Please write your requirements and information to Contact YODEE directly at any time, the YODEE TEAM will respond you within 12 hours.
