US$5,999.00-8,999.00
|
1 Piece
(MOQ)
|
Basic Info.
Rated Loading Capacity
1.2-12 Tons
Certification
ISO9001, CE, RoHS, BV
Color
Blue, Yellow, Red, etc
Power Source
Battery or Diesel
Voltage
220V/110V/Customize
Walking Mode
Hydraulic Motor Drive
Transport Package
Wooden Box
Production Capacity
10000/Month
Product Description

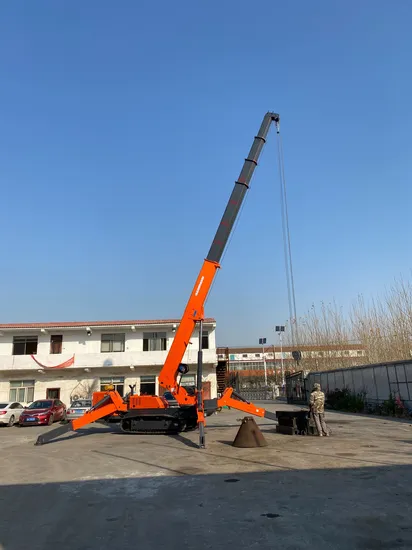

PLK LIFT Crawler Spider Crane combines the space-saving qualities of a spider crane with the powerful lifting capabilities of a pick-and-carry crane inside one practical machine. This compa ct equipment offers an alternate solution to the difficulties associated with lifting in areas with re stricted access. Features & Advantages: 1. The Crawler Spider Crane for moving loads quickly, easily, and safely. 2. Spider crane, suitable for occasions with limited space. 3. The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane. 4. The main arm is 4-5 sections. The main arm section adopts a U-shaped structure. The single-st age telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronous expansion and contraction of the main arm. 5. The telescoping limit of the boom uses the double insurance of the marking line and the alarm
Data Sheet
Model Type | CL1.2 | CL2.0 | CL3.0 | CL5.0 | CL8.0 | CL12.0 |
Load capacity | 1.2 ton | 2 ton | 3 ton | 5 ton | 8 ton | 12 ton |
Max ground lift | 5.8m | 5.98m | 9.9m | 16.8m | 18.5m | 23.5m |
Max operating radius | 5m×0.3t | 4.7m×0.4t | 8.6m×0.4t | 15.3m×0.5t | 16.8m×0.35t | 21.3m×0.5t |
Walking device | Walking mode | Hydraulic motor drive, two speed |
| Walking speed | 0-2.5km/h | 0-2.0km/h | 0-2.5km/h | 0-2.5km/h | 0-2.5km/h | 0-3km/h |
| Climbing ability | 20°(36%) |
Engine | Start mode | Electric start |
| Startup performance | -5°C~40°C |
| Engine | Gasoline | Diesel/AC | Diesel/AC | Diesel/AC | Diesel/AC | Diesel/AC |
| Battery capacity | 12v 45AH | 12v 45AH | 12v 45AH | 12v 45AH | 12v 45AH | 24v 45AH |
Vehicle Size(e( L*W*H)) | 2095 * 600 * 1450mm | 2200 * 950 * 1650mm | 2950 *980 * 1560mm | 4750 *1500 * 2200mm | 5000 *1600 * 2200mm | 5700 *1800 * 2400mm |
weight(KG) | 1800kg | 2000kg | 2500kg | 6500kg | 7800kg | 11500kg |
Company Information
Our Service
1.We can design the customerized electric crane as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the electric crane break down to help you repair.
6.Parts of crane can be sent to you by express within 7 days if needed.
