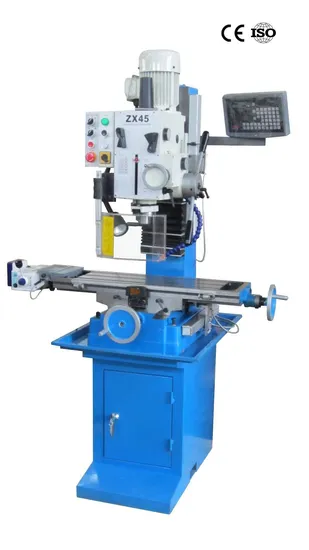

Senmo Brand China Gear Head Milling and Drilling Machine Zx45
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
ZX45
Type
Worktable Milling Machine
Structure
Rocker
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Working Table Size
800X240mm
Working Table Travel
560X190mm
T-Slot Size
14mm
Spindle Stroke
120mm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84592900
Product Description
| Milling Drilling Machine ZX45 Feature |
| ·Milling drilling, tapping, boring, reaming |
| ·Gear driving and strong cutting power |
| ·Headstock can rotated 360°and can tilted ±45° |
| ·Heavy-duty tapered roller bearing spindle |
| ·Positive spindle lock |
| ·Adjustable gibs on table |
| ·Micro feed precision |
| Specifications | ZX45 | |
| Max. drilling capacity (iron/steel) | Ø45/32mm(MT4) | |
| Face mill capacity | Ø80mm | |
| End mill capacity | Ø32mm | |
| Working table size | 800x240mm | |
| Working table travel | 560x190mm | |
| T-Slot size | 14mm | |
| Spindle stroke | 120mm | |
| Max. distance spindle to table | 460mm | |
| Distance between spindle and column | 260mm | |
| Head tilt left and right | 90° | |
| Spindle taper | MT3 or MT4 or R8 | |
| Spindle speed range | 1 Speed motor 1.1KW (standard): | 75-1600rpm |
| 2 Speed motor 0.85KW/1.1KW (optional): | 75-3200rpm | |
| Number of speeds | 6 or 12steps (optional) | |
| Auto spindle feeds (optional) | 0.1/0.18/0.26mm/r | |
| Cooling motor (optional) | 40W | |
| N.W/G.W | 330/380kg | |
| Packing dimension (w/o stand) | 850x760x1150mm | |
| 20' container | 36sets | |
| Standard Accessories | Optional Accessories |
| Draw bar | S-Machine stand |
| Adapter | C-Cooling system |
| Taper shank for drilling chuck | L-Halogen light |
| Drilling chuck | W-Work table power feeder |
| Arbor | B-CE electrical control box(tapping) |
| T slot bolt | F-Auto spindle feeder |
| Washer | D-2-step motor |
| Nut | R-Digital read out (DRO) |
| Tilted wedge | |
| Spanner | |
| Oil gun |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
