US$4,000.00-50,000.00
|
1 Set
(MOQ)
|
Basic Info.
Making Method of Parison
Extrusion-Blow Molding
Computerized
Computerized
Certification
CE, ISO9001:2008
Advantage 1
Strong Frame with Handle More Strong
Suit Product
PP or Pet Bottle
Model Type
Auto or Semi-Auto Type
Transport Package
Wooden Case
Production Capacity
30 Sets Per Month
Product Description
Automatic PET PP bottle Blow Molding Machine
Full-automatic blow molding machine use FESTO parts It's widely to produce all kinds PET bottles. It can produce 0.1L -2L bottle with 2 or 4, 6 cavity mold. It's the best choose for the carbonated, mineral, pesticide, cosmetics, wide-mouth and water, oil and other packing container making company.
MACHINE FEATURES:
1. Machine use of advanced PLC control system, stable in performance, automatic preform feeding.
2. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater
3. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
4. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
No contamination and low noise with the air cylinder to drive the action instead of the oil
Pump.
6. Air route design is divide into two parts,
7. Ideal effect of the chilling with the chilling system
8. Low rejection rate: Less than 0.3percent
| ITEM | UNIT | HY-A2 | HY-A4 | HY-A6 |
Machine | Clamping force | Kn | 1500 | 2000 | 2500 |
Clamping stroke | mm | 230 | 230 | 230 |
Stretching stroke | mm | 370 | 370 | 370 |
Bottom stroke | mm | 70 | 70 | 70 |
Number of cavities | Cavity | 2 | 4 | 6 |
Container | Max. container volume | ltr | 2L | 2L | 1.5L |
Max Neck diameter | mm | 50 | 50 | 50 |
Max .container diameter | mm | 200 | 200 | 200 |
Max. container height | mm | 330 | 330 | 330 |
Theoretical output | bph | 1600-2000 | 3200-4000 | 4000-5000 |
Electrical System | Total power | KW | 30 | 40 | 50 |
Heating power | KW | 28 | 38 | 48 |
Power supply | 380V/50HZ |
Power consumption | KW/H | 15 0.5L | 22 0.5L | 28 0.5L |
Air system | Operating pressure | Mpa | 0.8 | 0.8 | 0.8 |
Low pressure consumption | L/min | 600 0.5L | 1000 0.5L | 1300 0.5L |
Blowing pressure | Mpa | 3.0 | 3.0 | 3.0 |
High pressure consumption | L/min | 1000 0.5L | 2000 0.5L | 3000 0.5L |
Machine size | Main machine(L×W×H) | cm | 200*170*180 | 350*170*180 | 460*170*180 |
Preform auto-loader | cm | 115*95*185 | 115*95*185 | 115*95*185 |
Machine weight | Kg | 2000 | 3000 | 4000 |

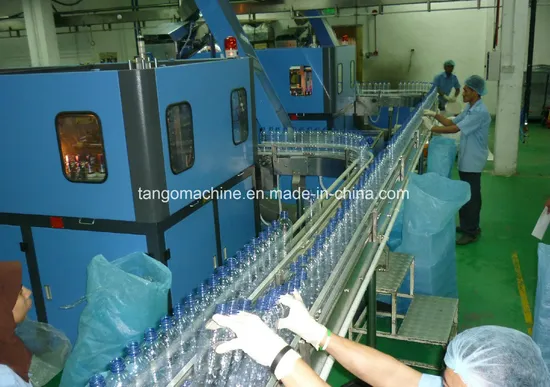

At client workshop
Electricity list brand
We also have semi-auto type blow molding machine
Our company and certificate
