Model NO.
Z5032C/Z5040C/Z5045C
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Max.Drilling Capacity
32/40/45mm
Working Table Size
730*210mm
Motor Power
0.75/1.1/1.5kw
Swivel Angle of Table Horizontally
360
Worktable Travel X/Y
500/205mm
Transport Package
Plywood Case
Specification
1850*750*1000mm
Production Capacity
50000/Months
Product Description
1.Features
1)Drilling ,milling and tapping
2)Spindle speed step-changed cyclically,spindle auto-feeding and cyclic change of feed speed
3)Head swivels 360° horizontally
4)Headstock and worktable up &down perpendiculary
5)Super high column
6)Precision micro feed
7)Positive spindle lock
8)Distinct auto device for releasing tools operate very easily
9)Gear driven ,lower noise Main Applications This machine tool is a kind of universal machine tool which is mainly applicable for drilling as well as for hold slash, spot facing, chamfering, reaming, tapping, boring.
Headstock can be moved up and down, and rotated 360º around the vertical column, middle worktable can be move left and right or front and back , Headstock (except (Z5045/1)) can be leaned ±90º .
Move headstock and work table by worm gear, easily operate. Depth of dill is ensured by scale fixed on sleeve and Setting nut.
In order to easily change tools the automatic tool-stripping device is mounted in the spindle.
2.Specification
DRILLING MACHINE | Z5032C/Z5040C/Z5045C |
Max. drilling capacity | 32/40/45mm |
Spindle taper | M. T.4 or R8 |
Spindle travel | 130mm |
Step of speed | 6 |
Range of spindle speed 50Hz | 80-1250 r. p. m |
60Hz | 95-1500 r. p. m |
Step of spindle auto-feeding | 6 |
Range of spindle auto-feeding amount | 0.06-0.30mm/r |
Min. distance from spindle axis to column | 283mm |
Max. distance from spindle nose to worktable | 700mm |
Max. distance from spindle nose to stand table | 1125mm |
Max. travel of headstock | 250mm |
Swivel angle of headstock(horizontal) | 360° |
Max. travel of worktable bracket | 600mm |
Worktable size | 730*210mm |
Forward and afterward travel of worktable | 205mm |
Left anf right travle of worktable | 500mm |
Vertical travel of worktable | 570mm |
Size of stand worktable of avaliability | 417× 416mm |
Motor Power | 0.75KW/1.1KW/1.5KW |
Motor speed | 1400 r. p. m |
Cooling pump power | 0.04KW |
Net weight/Gross weight | 430/500kg |
Packing size | 1850× 950× 1000mm |
Loading amount | 18pcs/20" container |
3.Standard accessories : drill chuck1-13mm, Removing Block,Drill chuck arbor
4.Optional accessories :
90mm paraller vise:
125mm paraller vise:
.milling cuttter holder:
.drill chuck:
.Mill chuck
Coolant system
Working lamp
Auto-tapping electrical
Boring bar
150mm rotary table

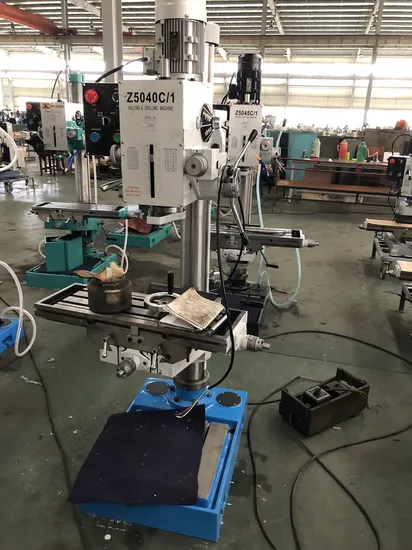

5.Machine photos
