G10 FR4 Electrical insulation material
Basic information
o.
Item
Units
Value
G-10
FR-4
G-11
FR-5
1
Applicable Standards

NEMA L1
2
Density
g/cm3
1.80~1.90
1.80~1.90
1.80~1.90
1.80~1.90
3
Bending strength perpendicular to laminations
MPa
340
340
340
340
4
Impact strength parallel to laminations( Charpy)
kJ/m2
33
33
33
33
5
Insulation resistance after impregnated in water
Ω
5×1010
5×1010
5×1010
5×1010
6
Relative permittivity 48~62Hz





7
Voltage endurance parallel to lamination (in oil 90±2°C)
kV
35
35
35
35
8
Voltage endurance perpendicular to lamination (in oil 90±2°C)
Thickness 0.5mm
Thickness 1mm
Thickness 2mm
Thickness 3mm

kV/mm

16.1
14.2
11.8
10.2

16.1
14.2
11.8
10.2

16.1
14.2
11.8
10.2

16.1
14.2
11.8
10.2
9
Water absorption
Thickness 0.5mm
Thickness 1.0mm
Thickness 2.0mm
Thickness 5.0mm
Thickness 10.0mm

mg

17
18
20
25
34

17
18
20
25
34

17
18
20
25
34

17
18
20
25
34
10
Flame resistance


V0

V0
11
Temperature index
°C
155
155
155
155

Specification

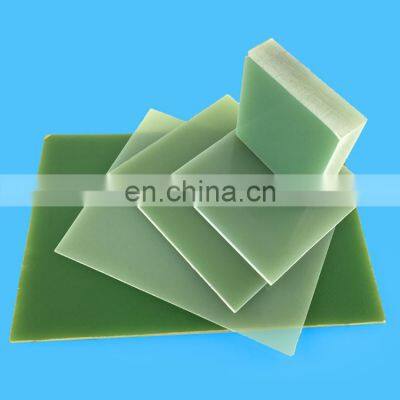

1. Size: 1020x1220mm2. Thickness: 0.5mm-100mm3. Color:light greenEpoxy glass cloth laminated sheets(industry laminate sheet,Epoxy sheet) are made of alkali-free E-glass cloth impregnated with epoxy resins and phenolic resins by processing under heat and pressure. Epoxy glass cloth sheet can be processed into all kinds of insulation parts, The products are widely used transformers, electric motors, cabinets, control boxes, electric switches, household appliances, railway, automobile, computer and medical appliance,etc.
Product show:
Company Information
Shenzhen Xiongyihua Plastic Insulation Limited was established in 2006 in Shenzhen, after more than decades of continuous efforts , has developed into a professional integrated manufacturer of specializes in production and development Engineering Plastic and Insulation Plastic ,is the most complete varieties. We have automatic dipping production lines, CNC carving machine and laser engraving machine, along with several saws, milling, planing,grinding, drilling, tapping, punching, cutting and other machining large production equipment.
Our main products :
1.Insulation Plastic Series : 3240/FR-4/G10 Epoxy Fiberglass ,Bakelite,3025 Phenolic Cotton Cloth Laminated,3021 Phenolic Paper Laminated,High Voltage Insulation Plastic.
2.Engineering Plastic Series: PA6/MC Nylon ,POM, PTFE,PVC,PE,PU,Acrylic,ABS and so on.
3. Insulation Machining Parts Series : Customized according to the customers’ drawings and designs,welcome to contact us for more details.
Our well-equipment facilites and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
As a result of our products and outstanding customer service, we have gained a global sales network reaching India, Vietnam, Thailand, Indonesia, Philippines, Malaysia, Turkey, Pakistan, Dubai, and some other countries from European, like Brirain, France and German. And America, Australia, etc,enjoying great reputation in plastic industry.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Certifications
Packaging
Packaging:
1.one pc acrylic sheetpacking: covered with craft paper or PE film on double sides ,the covered film without any our compoany sign.
2.with pallet Bulk cargo packing: 2 tons per pallet, use wooden pallets and iron pallets on bottom, with packaging film packages all around ensure transportation security.
3.Full container load packing: 20-23 tons(about 3000pcs) of a 20 foot container with 10 -12pallets .
