US$1,000.00-50,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Intake Width
1200 1600 1800
Motor Power
2*45 2*75 2*90
Mpeed of Mainshaftsure
12-16 12-18 8-10 5-8
Hobbing Cutter Diameter
400 500 600
Applied Range
Car Wheels, Aluminum Engines, Motorcycle and Other
Texture of Material
Steel
Transport Package
Wooden Crate
Specification
2650mm*1550mm*990mm
Production Capacity
100000
Product Description

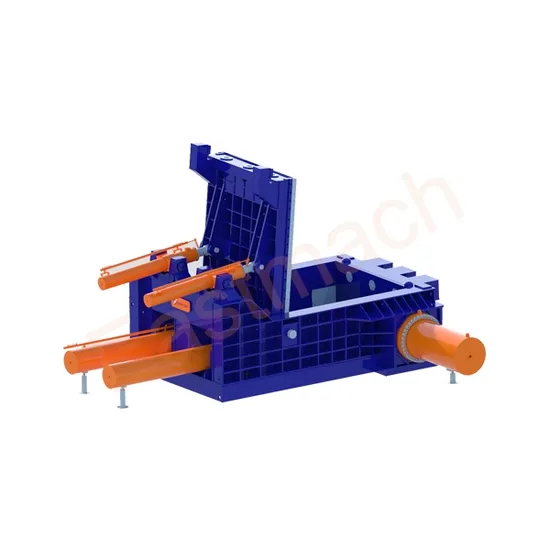

Product Feature Hydraulic Scarp Metal Baler for sale
The Hydraulic Scarp Metal Baler squeezes various scrap metal materials into various shapes of furnace materials, suitable for scrap steel processing and distribution centers, scrap car dismantling centers, casting industries, and more.
The product has the following characteristics:
1. The lining plate is made of ultra strong wear-resistant plate, with a long service life, which is 3-5 times that of ordinary lining plates;
2. The lock head material is made of high-strength alloy, with a larger locking length and more efficient locking oil cylinder;
3. The front and rear pin shaft bushings of the door cover oil cylinder and the door cover pin shaft bushings adopt oil-free bearings, which are safer and more reliable;
4. The side pressure head adopts a limit structure up and down, left and right to protect the side pressure head and side pressure oil cylinder, reducing maintenance costs.
Own brand as manufacturing also accepts OEM/ODM
Product Parameters
Product model | Oil cylinder pressure(t) | (**)Feedbox size(mm) | Bale size(W×H/mm) | Motor power(KW) |
Y81-125 | 125 | 1200×700×600 | 300×300 | 15 |
Y81-160 | 160 | 1600×1000×700 | 400×400 | 37 |
Y81-200 | 200 | 1600×1200×700 | 400×400 | 2×22 |
Y81-250 | 250 | 2000×1400×900 | 500×500 | 2×22 |
Y81-315A | 315 | 2500×2000×1200 | 500×500/600×600 | 2×45 |
Y81-315B | 315 | 3000×2500×1200 | 600×600 | 2×45 |
Y81-315C | 315 | 3500×3000×1200 | 600×600/700×700 | 2×45 |
Y81-315D | 315 | 3500×3000×1200 | 600×600/700×700 | 3×45 |
Y81-400 | 400 | 3000×2000×1300 | 600×600/700×700 | 3×45 |
Y81-500 | 500 | 3000×2000×1300 | 700×700 | 3×45 |
Y81-630 | 630 | 4000×3000×1300 | 700×700/800×800 | 3×45 |
Y81-800 | 800 | 4000×3000×1400 | 700×700/800×800 | 4×45 |
Y81-1000 | 1000 | 4000×3000×1400 | 700×700/800×800 | 5×45 |
Y81-1500 | 1500 | 4000×3000×1500 | 700×700/800×800 | 8×45 |
Y81-2000 | 2000 | 4000×3000×1500 | 700×700/800×800 | 10×45 |
Y81-3000 | 3000 | 4000×3000×1600 | 700×700/800×800 | 12×45 |
Product Description FAQ
1.Which country have been exported?
Russia, USA, Canada, Japan, Korea, Malaysia, Hong Kong, Taiwan, India, Indonesia, Australia, New Zealand, Israel, South Africa etc.
2.How about the Shipment?
Shipment can be made by sea, air or land. Sea loading ports include Qingdao, Yantai and Shanghai etc. Sales manager will select an
optimal shipping method for you. For more information, please contact us.
3. How about the package?
Our attachments are packaged by standard export wooden cases free from fumigation.
4. How about delivery time?
Usually 15 days subject to order quantity. Due to the surge in orders, please check with customer service staff for lead time.
