Basic Info.
Type
Tool Milling Machine
Milling Cutter Type
Customized
Milling Cutter Structure
Customized
Controlling Mode
Artificial
Certification
GS, CE, RoHS, ISO 9001
Name
X715 Universal Bed Type Milling Machine for Sale
Spindle Speed
40-1600/12steps
Distance Spindle to Column
610mm
Key Word 1
Milling Machine for Metal
Key Word 2
Turret Milling Machine
Key Word 3
China Milling Machine
Transport Package
Wooden Pallet
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
330.00cm * 238.00cm * 275.00cm
Package Gross Weight
7300.000kg
Product Description

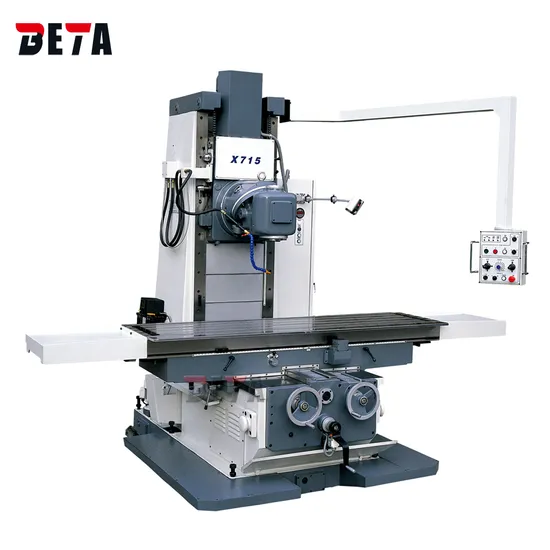

High Quality X715 Universal Variable Speed Bed Type Milling Machine
Standard accessories:
Quartz lamp,
cooling,
emergency stop,
CE standard electrical parts,
three axis automatic feed
Optional accessories:
3-axis SINO digital display, Flat pliers 200mm,
X,Y axis change to ball screw,
Universal dividing head F11160A
Rotary table TS400A
Spindle protection
LED light
Model | Unit | X715 |
Table size | mm | 2100 x 500 |
Spindle taper | - | ISO 50 |
Spindle speed | rpm | (12) 40 - 1600 |
Travel longitudinal (x) | mm | 1500 |
Trave cross (y) | mm | 700 |
Trave vertical (z) | mm | 700 |
Distance spindle to column | mm | 610 |
Spindle head tilting range | degree | 360° |
Distance spindle to table | mm | 0 - 700 |
Feeding speeds X-axis (stepless) | mm/min | 20 - 1800 |
Feeding speeds Y-axis (stepless) | mm/min | 20 - 1800 |
Feeding speeds Z-axis (stepless) | mm/min | 10 - 900 |
Rapid feed X/Y-axis | mm/min | 3500 |
Rapid feed Z-axis | mm/min | 1750 |
Feeding motor power | kw | 2 |
Coolant motor power | kw | 0.5 |
Main motor power | kw | 7.5 |
Machine dimensions (W x D x H) | mm | 3300x2380x2750 |
Weight approx. | kg | 7300 |
| | |
| | |
| | |
| | |
| | |
| | |
