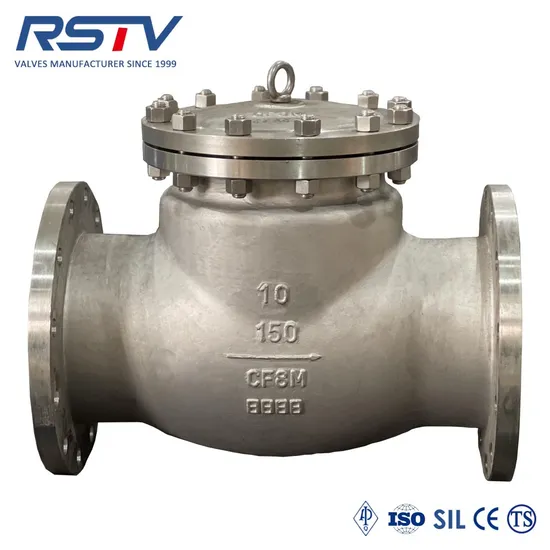

Cast Steel Wcb/CF8 Swing Check Valve, Flange End, 150lb 300lb 600lb

Cast Steel Wcb/CF8 Swing Check Valve, Flange End, 150lb 300lb 600lb

US$88.00 1 Piece (MOQ)

Basic Info.

Model NO.
H44W/H/Y
Material
Wcb, SS304, SS316, CF8, CF8m, Lcc, Lcb, Wc6, Wc9
Connection Form
Flange
Structure
Swing
Pressure
Low, Ordinary, High Pressure
Function
Non Return
Sealing Form
Hard Seat
Flow Direction
Unidirection
Standard
ANSI
Application
Industrial Usage, Water Industrial Usage, Household Usage
Certification
CE, ISO
Class
150lb, 300lb, 600lb, 900lb, 1500lb, 2500lb
MOQ
1PC
Guarantee Period
18 Months After Delivery
Transport Package
Standard Export Package
Specification
2"-24"
Trademark
RST/OEM
Origin
Zhejiang Pr. China
HS Code
8481804090
Production Capacity
3600ton/Year

Packaging & Delivery

Package Size
1.06cm * 1.06cm * 1.12cm
Package Gross Weight
1000.000kg

Product Description

Product Description API Flanged Non-Return Cast Steel Swing Type Check Valve(WCB/CF8/CF8M) 150LB~2500LB
Introducing our high-quality Cast Steel Swing Check Valve, designed for reliable performance in industrial applications. This valve features a durable construction with WCB/CF8 etc material, ensuring long-lasting use and resistance to corrosion. The Flange End design allows for easy installation and maintenance. With a pressure rating of 150LB to 2500lb, this valve is suitable for a wide range of operating conditions. Whether you need to prevent backflow or ensure fluid control, this Swing Check Valve is the perfect solution. It meets CE and ISO standards, guaranteeing safety and quality. Upgrade your system with this efficient and dependable Cast Steel Swing Check Valve.
Applicable standards:
1:Design and manufacture standard:BS1868;API 594;ASME B 16.34;API 6D
2:Face to face dimension standard:ASME B16.10
3:Flange ends standard(RF/RTJ):ASME B16.5
4:Butt weld ends standard:ANSI B16.25
5:Inspect and test standard:API 598
6:Others:As manufacturer or as client request
Features:
1:Full port/standard port;FP,SP;reduce port,RP.
2:Swing check valve;lift check valve;vertical lift check valve;wafer check valve;lug type wafer check valve;single plate check valve;dual plate check valve
3:Automatic switch type
4:unidirectional
5:Soft seat ;hard seat
6:Investment casting body
7:Others:NACE standard is workable;OEM/ODM;
Support customization. Product Parameters Technical specification:
Nominal pressure 150lb
(2.0MPa)
300lb
(5.0MPa)
600lb
(10.0MPa)
900lb
(15.0MPa)
Test Medium
ShellTest 3.0MPa 7.8 15 22.5 WATER
Seal Test 2.2MPa 5.6 11 16.5 WATER
Back seal 2.2MPa 5.6 11 16.5 WATER
Air seal 0.6MPa 0.6 0.6 0.6 AIR
Suitable Temperature:-196-550ºC;-320.8-1022ºF
Suitable Media:water,oil,gas,some corrosive environment
Product Name:Check valve
1:Material Cast Steel ASTM A216 WCB,CS,LCC,LCB,WCC,WC6,WC9;
Cast stainless steel A351 CF8,CF8M; SS304,SS316,
SCS13,SCS14,SS201,Duplex 2205,2207;
Forged steel A105; F304;F316;
Trim:Soft seat PTFE;RPTFE;NYLON;PPL;PEEK etc
Hard seat 13CR+ENP;STL;WC etc
2:Size 1/2"-24"(DN15-DN600)accordingly
3:Port Full port/reduce port
4:Class 150lb-2500lb,PN16-PN420,JIS 5K-20K
5:Ends Flange end RF/RTJ/FF;Screw end BSPT,BSPP,G,NPT;
Butt welded;Socket welded
6:Operate Automatic switch type
7:Delivery 1-120Days( depend on the detail item and quantity)
8:Package Standard exporting plywood case
9:Sea port Ningbo;Shanghai;Tianjin;Shenzhou,China
10:MOQ No limited
11:Shipping terms:EXW,FOB,CFR,CIF;by sea,by air,by courier
12:Payment terms:T/T,DP,LC at sight
13:H.S code:8481804090
14:Certificates:ISO,CE,TS,API 6D,API 600,API 607
15:Country of Origin:China
Detailed Photos


Certifications
Packaging & Shipping
Company Profile RST Valve Group CO., Ltd was founded in Wenzhou City with more than 20 years of experience in producing different
kinds of industrial valves,including Ball Valve, Gate Valve, Check Valve, Globe Valve, Y Strainer, etc.
It is a high-tech comprehensive valve enterprise with design, research and development, casting ,manufacturing, sales
and service.
RST VALVE owns more than 100 employees. In our production line, we have CNC machining equipment, grinding machines,
assembly machines, welding torches, hydraulic / air testing equipment at our workshop. The annual production capability of the
factory can reach 6000 tons. RST Valve is an ISO, CE and TS certified manufacturer with much experience of exporting
RST Valve keeps continuous innovation and owns a strong technical force, excellent equipment, complete testing system, and
strict management system. Inspection includes raw material inspection, dimensional inspection, processing inspection,
chemical testing, physical testing, pressure testing, etc, which guarantee the quality of finished products.
RST VALVE can offer different kinds of industrial valves, including Ball Valve, Gate Valve, Check Valve, Globe Valve, Y Strainer, etc.
Our products are performed in accordance with national standards of API , ANSI, DIN, JIS, BS and GB and so on.
Our various products are widely used in petrochemical industry, petroleum refining, nuclear power, chemical industry, metallurgy as well
as mining, medical industry, food industry, national defense, urban construction and many other fields. Moreover,
RST Valve accepts Valve OEM, ODM inquiry from customers.
Our Advantages
FAQ Question 1: What's the material of our valves? Are they safe?
Answer: Our valves are made of materials such as WCB, CF8, CF8M, CF3, CF3M, SS201, SS304, SS316, SS304L, SS316L, A105, SS317L, SS2205, WCC, LCB, LCC, WC6, WC9, Bronze, etc.
Question 2: What is the MOQ of our products?
Answer: There are no limits, and it depends on the items.
Question 3: What is the warranty of our products?
Answer: Usually, there is a 12-month warranty when clients receive our products. We offer repair or replacement for quality issues.
Question 4: How are our products packaged?
Answer: For screw end valves: plastic bag + small carton box + plywood box. For flange end valves: plastic bag + plywood box.
Question 5: What are the payment options?
Answer: We accept T/T, LC, Alipay, and Wechat pay. Payment terms are 30% prepayment, 70% balance before shipping or against copy of BL.
Question 6: Can you manufacture valves according to different standards?
Answer: Yes, we can manufacture API, DIN, GOST, JIS standards based on different pressure, temperature, and size requirements.
If you have more questions about our products, feel free to contact us. We are here to assist you.
