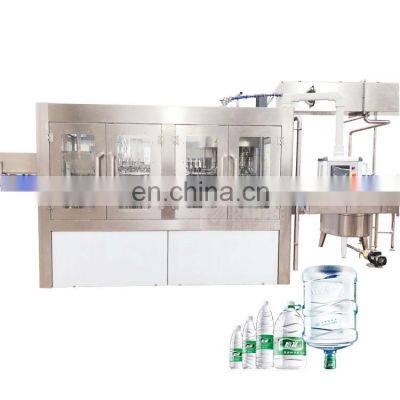

Washing Part: The bottle enters into the rinsing part of three-in-one machine through air conveyor. The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. | |
Filling Part: Long tube filling type with 2 times filling process to make sure perfect filling level Liquid tank, filling valves, controlling rings, upgrading cylinder. High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. | |
Capping Part: Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam. | |
Air Conveyor: Air Conveyor is mainly used in the automatic filling production line of PET bottle beverage or water. It is the intermediate transportation of connecting blowing machine, unstacking machine, bottle storage conveying table and filling machine. | |
Conveyor System Conveying path support on the ground by tripod, driving motor adopt frequency control, it connects with washing filling and capping 3 in 1 machine and keeps pace with it. The filled bottles are conveyed by the conveyor system. Driving system is running by a main motor that adopts gear drive mode. |
Automatic water filling machine production line packaging specifications | Material: SS304/316 | |||||
Bottle material | Shape | Filling volume | Filling level(mm) | Neck type | ||
PET/Glass bottle | Square/round/flat bottle | 100-2250ml | According request±1mm | As required | ||
Adjustable specifications | Bottle size: bottle diameter≤110mm, bottle height≤340mm | |||||
If using square bottles, then bottle separating system will be added | ||||||
Filling temperature | 2℃-40℃ level control: float ball and pneumatic butterfly valve. | |||||
Bottle labeling type | Packing system Min, Spec. | Palletizing system | ||||
Manual/ automatic Hot melt roll-fed PVC shrink label Full label/half label | Film shrink packing Robert packing Carton packing | 2*3 2*4 3*4 3*5 4*4 4*5 4*6 6-30bags/min | Low position Gantry palletizer Robot palletizer | |||
User Ambient Conditions | Temperature: 2-40℃, Humidity: no dew | |||||
Bottle feed-in | Conveyor with screw for glass bottle | Adopt air-conveyor for PET bottle |
RO System Besides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr. We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc | |
Blowing Machine with different options: 1. Semi automatic Blowing Machine for 800BPH-2000BPH from 0.2-2.5L bottle with 2 or 4 cavities. 2. Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle. | |
Automatic PVC sleeve labeling machine Capacity: 100-350bottles/min can be chosen Label material: PVC PET OPS, etc Bottle material: PET PE PP Glass Bottle Diameter: 28 ~ 120mm Bottle Height: 15~320mm Bottle shape: round, square, ellipse, rectangular Label length: 30~250mm(max) Label thickness: 0.03~0.13mm | |
Linear PE film shrink packing machine / Carton box packing machine Film material: PE / carton box Shrink membrane thickness: 70~100um Capacity: 8-35packages/ min can be chosen Conveyor belt max width: 600mm Height is: 1000~1100mm |
