Quality Glass/Panel/Marbel/Steel Plate Vacuum Suction Lifter Laser Machine Feeding Lifter Laser Cutting Vacuum Lift Systems Vacuum Lifter with CE/ISO/SGS

Quality Glass/Panel/Marbel/Steel Plate Vacuum Suction Lifter Laser Machine Feeding Lifter Laser Cutting Vacuum Lift Systems Vacuum Lifter with CE/ISO/SGS

US$599.00-3,240.00 1 Set (MOQ)

Basic Info.

Model NO.
XDL-300L-XDL2000L
Cup Quantity
4-20PCS
Suction Cup Diameter
200mm
Cups Quantity
4-20PCS
Suction Cup Raw Materials
Rubber
Loading Max Capacity
2000kg
Loading Max Size
2000X6000
Electric Power
220V/380V
Frequency
50/60
Bacuum Pressure Gauge
0.04-0.06MPa
Vacuum Pump
Oil-Less Vacuum Pump
Vacuum Alarm
Yes
Vacuum Alarm Time
1.5 Second
Surface Painting
Coated
Surface Color
Red/Orange/Sliver etc
Machine Size
2000X1000mm or Customerized
Machine Height
850mm
Transport Package
Plywood Box
Specification
300KG/600KG/800KG/1000KG/1500KG/2000KG
Trademark
XINDELONGJIXIE
Origin
Dongguan
HS Code
8428909090
Production Capacity
200sets/Week

Product Description

Vacuum Lifter

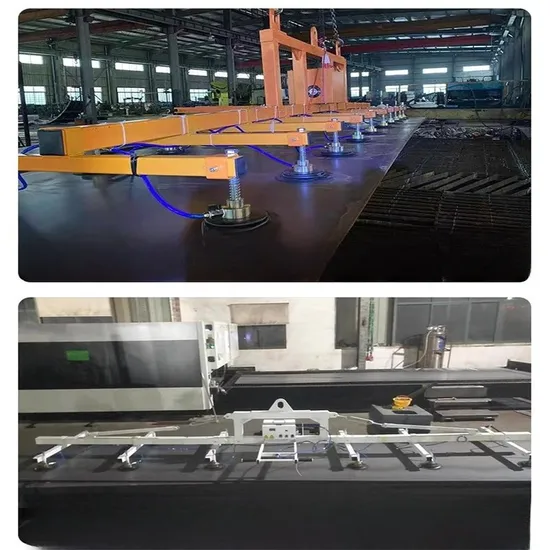

The vacuum lifter uses an electric vacuum pump as the vacuum power source to generate vacuum to absorb the workpiece.
Instead of traditional plate hooks, vacuum suction cups are used to suck and lift plates. The product is widely used in laser cutting, processing and lifting of curtain wall glass, stone, steel plates and other plates. Our company focuses on the research and development of vacuum suction and lifting equipment, and has the strength to provide various non-standard customizations.
Specification (Support Customerized size)
Model Length Capacity Sucker Qty Sucker diameter Input Voltage Package Size Gross weight
XDL300-2M 2m 300kg 4pcs 200mm 220/380V 2100x840x840mm 110kg
XDL600-2M 2m 600kg 6pcs 200mm 220/380V 2100x840x840mm 120kg
XDL800-2M 2m 800kg 8pcs 200mm 220/380V 2100x840x840mm 125kg
XDL800-3M 3m 800kg 8pcs 200mm 220/380V 2100x840x840mm 135kg
XDL1000-3M 3m 1000kg 10pcs 200mm 220/380V 2100x840x840mm 180kg
XDL1000-5M 5m 1000kg 10pcs 200mm 220/380V 2100x840x840mm 190kg
XDL2000-5M 5m 2000kg 20pcs 200mm 220/380V 2100x840x840mm 290kg

Easy to operate
The improved device is easy to use and easy to control.
Various types of equipment are used in different working scenarios
Stable to operate
Guided by pneumatic principles, the handling process can be completed with only operational control.
High efficiency and fast transportation
During the loading process, the operator can control the movement of the workpiece in space with less force.
High safety performance
Equipment air-cut protection and automatic braking device. When the power supply suddenly disappears, the plate will remain in place for a period of time without falling.
Rubber suction cup shock absorption
Each suction cup is equipped with a buffer device to effectively protect the vacuum system and workpiece, and is equipped with individual ball valve control
Zero scratches on the surface of the board
The suction cup is equipped with spring support to meet different degrees of deformation of the board, ensuring that the board is handled gently without scratching.
Product Size
*Various sizes, can be customized, and can meet the needs of different workshops
*Engineering design and Quality assurance it can improve work efficiency and reduce operator safety risks

Product Details
High quality thickened steel sheet metal
Sheet metal bracket welding base, fully painted bracket connection, not easy to break.
Intelligent alarm device
When the automatic detection system determines that the vacuum pressure is lower than the set value of 50, the vacuum alarm will sound and light alarm and provide efficient supply (only 1.5 seconds). When the vacuum height of the sucked plate is lower than the specified value, it will automatically sound the alarm.
*Adjustable Square Design
Freely adjust the position and change the adsorption area to meet working scenarios of different sizes.
*Suction cup buffer
Each suction cup is equipped with a buffer device, which can effectively protect the vacuum system and the workpiece.
*Manual valve
Vacuum suction and release control valve, suction and release upward, release downward, scientific design, easy to use
*Vacuum pump
Use a high-reliability vacuum pump to evacuate quickly, with little vibration and long life.

Why Choos Us ?
* XINDELONGJIXIE factory has complete product production, trial production, inspection standards and processes to ensure that each process of the product has strict control and high standards. The plate suction crane is specially used for handling various plates and is suitable for loading and unloading of various processing machines. It has long-term cooperation with international and domestic laser cutting machine manufacturers.
1. Focus on loading and unloading of laser cutting machines, plasma cutting machines and shearing machines
2. Suitable for aluminum plates and stainless steel plates
3. Imported vacuum pumps and valves
4. Maximum load 2000KG
5. Accumulator and pressure detection ensure safety
6. Various structures and suction cups are available for configuration
7. Can be applied to high temperature plates below 400 degrees
8. The company passed IOS9001 and the products passed CE certification.
*We have 7 inspection and testing procedures before shipment to ensure we provide high-quality products to our partners.
1.Close test
2.Pressure holding test
3.Leakage detection
4.Overload test
5.Import test
6.Noise detection
7.Appearance inspection
*All products have a 12-month warranty, lifetime maintenance, and one-on-one engineer contact.
*Sufficient inventory of semi-finished products enables fast delivery; there is a professional export team to connect and provide customers with the most efficient delivery methods.
Product Package
* The inside of the equipment is wrapped with plastic foam to protect it, and tied with zip ties; then placed neatly in a wooden box.
* Use thickened export wooden boards to seal and protect the goods to ensure that the goods will not be damaged during transportation.
Product specifications and performance
1. The maximum load capacity of the vacuum lifting crane is 800KG. The size of the lifting plate is 1.5m*3m (the maximum can be customized is 2m*6m).
2. Full range of oil-free vacuum pumps. The ratio of vacuum pump to suction cup is reasonable.
3. Safety is the first priority during plate transportation, so all series of vacuum cranes are equipped with vacuum check valves to keep the plates in an adsorbed state for several minutes in the event of an unexpected power outage.
4. The suction cup is equipped with spring support to meet different degrees of deformation of the board, ensuring that the board is handled with care and will not scratch the board.
5. The position of the suction cup is adjustable to meet the lifting needs of plates of different specifications.
6. Design and manufacturing comply with German UW and international CE safety certification.
7. Instructions for use of vacuum lift
1). The power supply of the crane is AC 220V, that is, one live wire and one neutral wire. For first time use, please connect the power cord to the power plug. Connect one end of the 1-2 square 3+1 sheathed wire to the elevator power plug, L to the live wire, N to the neutral wire, and one end to the power supply.
2). After starting the vacuum pump, remove the suction cup and suction cup.
