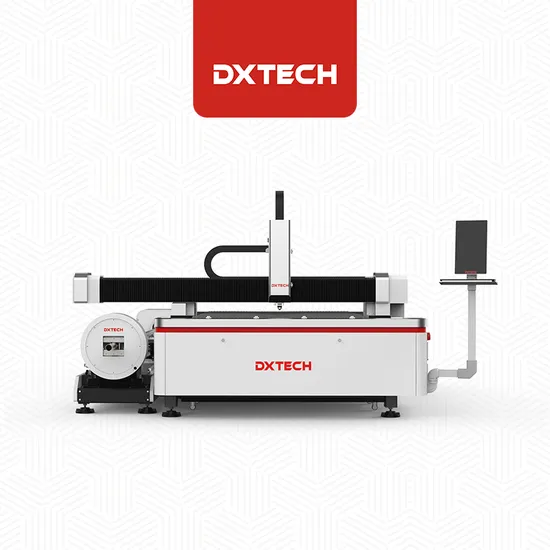

High Quality Fiber Laser Cutting Machine for Automotive Industry Metal Cutter

Product Description

Dual-use Metal Sheet Pipe Tube Laser Cutting Machine is designed for Circular Square Metal Pipe Tube Cutting and sheets cutting. It adopts strong steel bed, rack drive system, professional pipe laser cutting CNC system, which ensure good cutting accuracy and efficiency of the CNC laser cutting machine. Over 3500 sets CNC fiber laser cutting machine have been sold to over 180 countries. It is an ideal choice to cut plates and pipes for economic users.
Feature
1. One machine for two purposes Double-use function saves both cost and space. It can not only process metal sheets, but also various metal tubes, which greatly improves the work efficiency.
2. The strong steel bed to keep the machine for many years without distortion.
3. World-class components like guide rails and racks to guarantee the cutting accuracy.
4. The professional CNC pipe cutting system is easy and simple to operate and maintain.
5. Integrated large air volume dust removal system.
6. Imported high-end accessories to provide users with powerful cutting ability and efficiency, ensuring high-precision and stable operation of the machine.
Technical Parameters

Model	DXTECH-1530FLT	DXTECH-1560FLT	DXTECH-2060FLT
Working area (mm)	1515*3030	1515*6050	2020*6050
Worktable bearing capacity	800kg	1500kg	2000kg
Positioning accuracy	±0.03mm	±0.03mm	±0.03mm
Repositioning accuracy	±0.02mm	±0.02mm	±0.02mm
Pipe section shape	Round/square/rectangular	Round/square/rectangular	Round/square/rectangular
Max. length of pipe	3m/6m	3m/6m	3m/6m
Laser power	1kW - 6kW	1kW - 6kW	1kW - 6kW
Laser	Multiple options	Multiple options	Multiple options
Max. acceleration	1.5G	1.5G	1.5G
Max. running speed	140m/min	140m/min	140m/min

Cutting Sample

Product Category

Feedback
Company Profile
FAQ
01What is fiber laser cutting machine?
A:Fiber laser is a special type of solid state laser. Generally, fiber lasers are optically pumped.This is done by coupling the radiation of diode laseers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power. What's material can fiber laser cut? All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum,
copper, etc.

02What's the max. cutting thickness?
A:Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflectionsheet metal.

03Do you have CE document and other documents for customs clearance?
A:Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.

04 Payment terms?
A:****** trade assurance/TT/West Union/Payple/LC/Cash and so on.

05 I don't know how to use after i receive Or i have problem during use, how to do?
A:We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.

06 I don't know which one is suitable for me?
A:just tell us below information1) Max work size:choose most suitable model.2) Materials and Cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.also provide Door service if you need.
