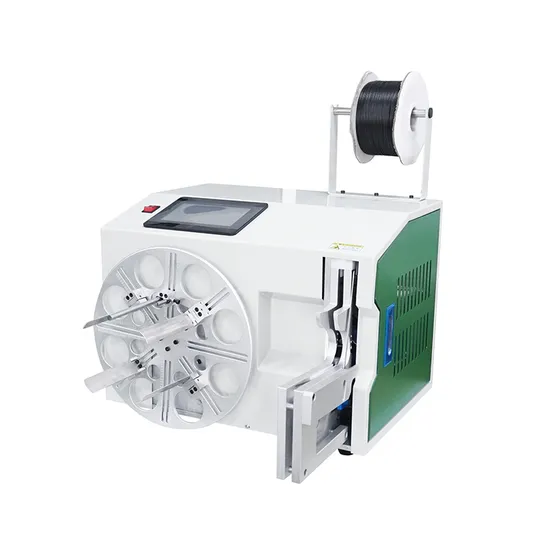

Twist Tie Machine Cable Coil Winding Machine Wire Binding Tying Machine

Twist Tie Machine Cable Coil Winding Machine Wire Binding Tying Machine

US$850.00-1,750.00 1 set (MOQ)

Basic Info.

Model NO.
WL-40-80-1
Certification
CE
Model
Wl-40-80-1
Bundling Diameter
40-80mm
Tying Wire Length
200-300mm
Twist Tie Speed
0.6s/PCS
Twist Circle Qty
Adjustable
Tie Wire Specs
1*2.9mm
Power Supply
AC220V/110V
Power Rating
<100W
Dimension
550*610*420mm
Net Weight
50kg
Twist Shape
Round O&Long&8 Shaped
Transport Package
Wooden Case
Specification
56*55*46cm
Trademark
Crown
Origin
China, Jiangsu
HS Code
8479811000
Production Capacity
3-10meters/Min

Product Description

Product description:
Winding machine for rubberized fabric tape/adhesive plaster tape
Model WL-40-80-1
Bundling diameter 40-80mm
Tying wire length 200-300mm
Twist tie speed 0.6s/pcs
Twist circle qty adjustable
Tie wire specs 1*2.9mm
Power supply AC220V/110v
Power rating <100w
Dimension 550*610*420mm
Net weight 50kg


Features:
This semi automatic wire and tube coiling and tying machine is suitable for winding and tying USB cable, headphone cable, AC/DC power cable, network cable, telephone cable, audio/video cable, HDMI cable, water hose, rubber tube and much more. It can customize the number of coils, the number of ties and the length of the cable tie. This semi automatic wire and tube coiling and tying machine is suitable for winding and tying USB cable, headphone cable, AC/DC power cable, network cable, telephone cable, audio/video cable, HDMI cable, water hose, rubber tube and much more.
PLC program control, LCD text parameter setting, easy to operate
Using stepper motor, the worker only needs to put the wire on the winding port and step on the foot pedal once to start the automatic winding, and then put the winded wire at the tying port, and the machine can automatically tie the wire
This machine can customize the number of coils, the number of ties and the length of the cable tie
The motor is equipped with brake control, and the reel can be turned and stopped at a fixed point, which is very convenient for next operation
Packing & Shipping: For small and light products packed by cartons,for large and heavy products packed by wooden
Product show:
Machine processing samples:
Related products:
FAQ:
1.How to order?
Please contact my Email for much more details, you can place order with us directly
or through ****** online transcation after confirmation.
2.What's your payment terms?
We accept trade assurance order, T/T,L/C, western union, Paypal etc.
3.How long does the production time?
Generally 3~7 days, if there's customized model or other request will be adjusted.
4.How do you packaged the products?
Small size machine, we will package it in standard neutral carton. Larrge size machine,
we will package it in standard wooden cases.
5.What can you provide for us?
Our service
We provide:
· Best products and factory price.
· On-time delivery and the shortest delivery time.
· 1year warranty. If our products cannot function properly within 12 months,
we'll offer spare parts for free and you need to pay for the delivery.
· OEM and customized service.
· User manuals will go with relative machines.
· QC: All products will be checked before delivery.
· Compensation: If any unqualified product is found, we'll pay the
compensation or send new qualified products to customers
· Maintenance & Repair: In case of any maintenance or repair need,
we'll help to find out the problem and offer relative guidance.
· Operation Guidance: If you have any problem with operation,
please feel free to contact us.

Company information:
Certificate:
Contact:
Pls contact Suzhou Crown for price inquiry or any other questions/doubt.
