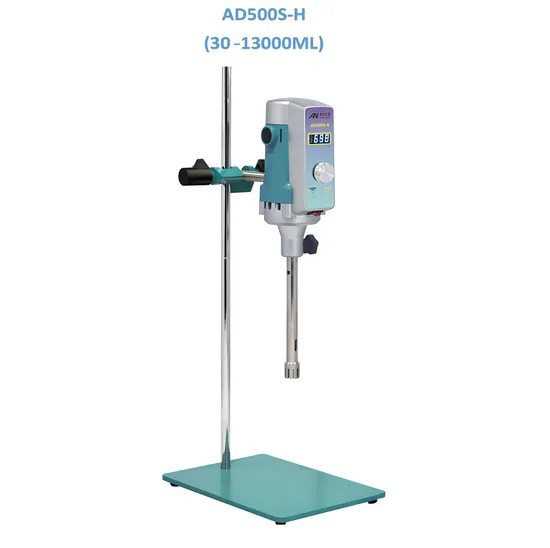

Automatic Laboratory Homogenizer High Speed Shear Emulsifying
Basic Info.
Model NO.
AD500S-H/18G
Condition
New
Stirring Type
Spiral
Working
Shear Mixer
Mixer Type
Homogenizer
Layout Type
Verticle
Operating type
Cycle Operating
Transport Package
Carton Packaging
Specification
215*310*720mm
Origin
China
Product Description
This model AD18 can be optional running monitor, display speed, convenient data collection experiment.Germany original ultra-high speed drive motor, the whole machine module structure, easy to operate, can choose a variety of specifications of scattered work head, to meet a variety of high requirements of the experiment, the work head is removable, convenient for replacement, cleaning, sterilization and other work.
No-load speed range: 13000-34000rpm
Working head material: 316L stainless steel
Detailed Photos
Parameter of working shaft:
| Working head | 12G | 18G | 24G | 30G | 36G |
| Mixing capacity (H2O, ml) | 30~800 | 50~1500 | 80~5000 | 100~8000 | 150~13000 |
| Max viscosity(mPa.s) | 5000 | 5000 | 5000 | 6000 | 7000 |
| Max. rotation speed(m/s) | 12 | 15 | 18 | 22 | 26 |
| Min./max.immersion depth(mm) | 35/150 | 45/160 | 50/165 | 60/170 | 65/175 |
| Size of stator(mm) | Ø12 | Ø18 | Ø24 | Ø30 | Ø36 |
| Legth(mm) | 215 | 242 | 245 | 255 | 258 |
| Max temperature(ºC) | 120 | 120 | 120 | 120 | 120 |
| Working head material | SS316L | SS316L | SS316L | SS316L | SS316L |
