Landworld 6.6kw Obc on-Board Charger Waterproof on-Board Power Supply
| US$1,800.00-2,000.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
LWC6K6-220S380-W
Certification
ISO
Usage
EV Onboard Charger
Interface
No
Color
Gray
Input Voltage
No
Operating Temp.
-40~80
Lprating
IP67
Weight
Less Than 8.5kg
Output Power
6.6kw
Transport Package
Carton Packaging
Specification
364x224x100mm
Trademark
LANDWORLD
Origin
China
Packaging & Delivery
Package Size
40.00cm * 40.00cm * 40.00cm
Package Gross Weight
10.500kg
Product Description

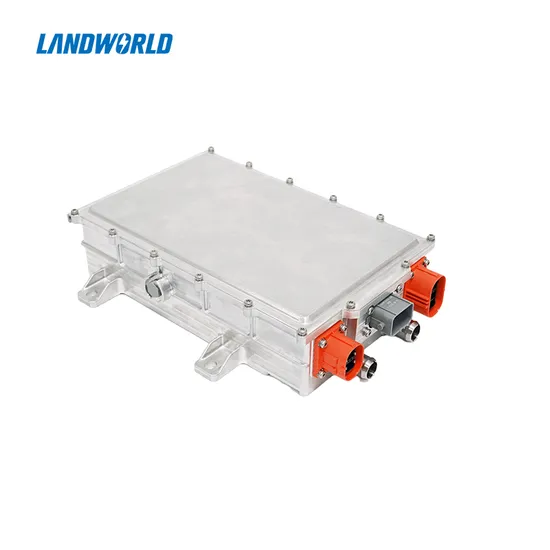

Landworld 6.6kw Obc on-Board Charger Waterproof on-Board Power Supply
LWC6K6-220S380-W
Product Features: Product dimension: 364x224x100mm Product weight: ≤8.5KG Cooling method: liquid cooled, flow≥6L/min IP rating: IP67 Support on-line upgrade and fault diagnosis High power density, modular design, easy for modular integration Full digital SW design, redundant protection function design Multi 6.6KW OBC can be paralleled; (2*6.6Kw , 3*6.6KW, 4*6.6KW OBC)
Main Technical Parameters
| Items | Technical Spec. | Remarks |
| Operation temperature | -40-85ºC | Working for long time |
| Nominal output power | 6.6kW | |
| Input voltage | 85--265Vac | |
| Nominal Vout | 200-450VDC | |
| Nominal output Current | 20A | |
| VCC power supply | 9-32Vdc | VCC |
| Eff. | ≥94% | @Nominal voltage |
| Voltage accuracy | ±1% | |
| Current accuracy | ±3% | |
| Low voltage Wake up | 12/24Vdc&200mAmax (WAKE_UP signal) | Wake up BMS/VCU |
| Wake up method | CAN/AC/CC/CP | Support booking charging |
| CAN communication | CAN-BUS | |
| Static current | ≤2mA | Current consumption at sleep mode or standby status |
| EMC standard | GB/T18387-2008, EN 55022 | EMC standard |
| Protection features | Input OVP/UVP, output OVP/UVP,OTP, OCP, output short-circuit protection, CAN communication breakdown protection | |
