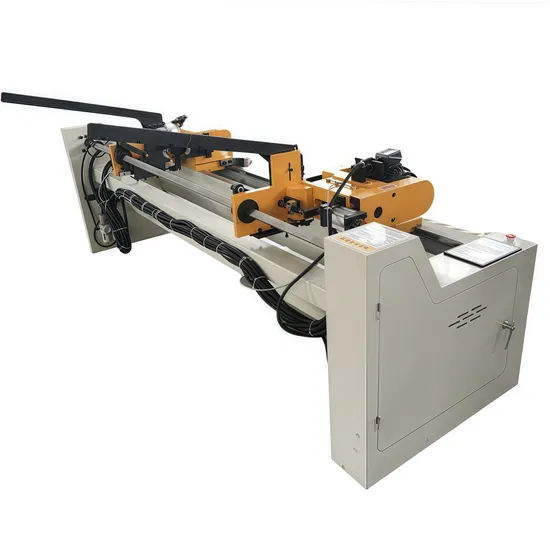

Automatic Double Head Tube Rod Pipes End Face Chamfering Machine

Product Description

Product Description
Main specification:

Die clamper and cutter head are special designed, can finish internal angle, external angle
and pipe end one time. rotate speed can be adjust according to the change of belt pulley, suit for all kinds of metal
material pipes It is easy to adjust the cutting feeding speed. Die clamper and cutter head are special designed, can finish internal angle, external angle
and pipe end one time. rotate speed can be adjust according to the change of belt pulley, suit for all kinds of metal
material pipes It is easy to adjust the cutting feeding speed. Die clamper and cutter head are special designed, can finish internal angle, external angle
and pipe end one time. rotate speed can be adjust according to the change of belt pulley, suit for all kinds of metal
material pipes It is easy to adjust the cutting feeding speed.
Product Parameters

SPEC.	WY/52SD
Spindle motor	2x1.5kw/4P (for steel, iron tube/pipe)
	2x1.5kw/1.0, 2/4P (for aluminum, bronze)
	2×1/0.75kw,4/8p (for SS)
Hydraulic motor	2HPx4P
Air pressure	0.6-0.8Mpa, 120ml/min.
Cutter head range	Φ12-60mm(standard); Φ25-76mm(opt.)
Workpiece length	50-800(mm)
Weight	1250Kg
Size	900*1200*930(mm)
