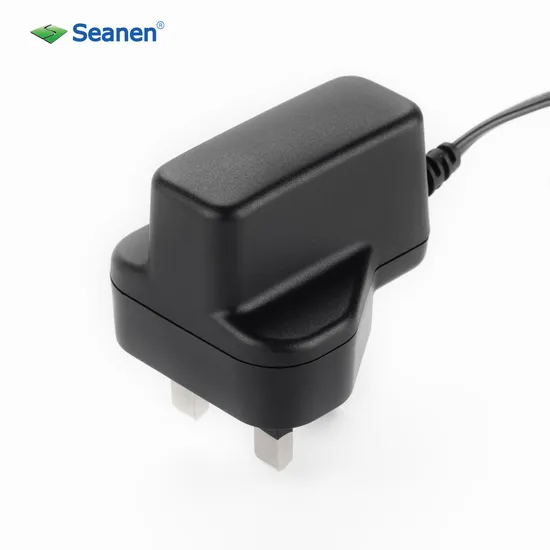

6W Series Wall Mount Power Adaptor

Product Description

6W Series Wall mount Power Adaptor

6W SERIES POWER ADAPTOR SPECIFICATION
Input	Rated input voltage	100-240Vac
	Operating range	90-264Vac
	Rated input frequency	50/60HZ
	Rated input current	0.18A max
	Power consumption (no-loading)	0.1W max
Output	Nominal DC output voltage	4.0-7.9V DC	8.0-12.0V DC
	Rating load current (Max)	0.75A	1.2A
	Rating output power (Max)	6.0W	6.0W
	Load regulation	+/-5%
	Ripple and noise	200 mVp-p
AC pin	Versions	US EU UK AU CN KR
	Types	Fixed pin / detachable pin
Protections	Over voltage protection	Yes
	Short-circuit protection	Yes
	Over current protection	Yes
Envionmental requirements	Operating Temperature	0°C +50°C
	Storage Temperature	-20°C +80°C
	Operating humidity	10%-90% RH (Non Condensing)
	Storage humidity	10%-90% RH (Non Condensing)
Size	55.1*24.1*35.49mm (L*W*H)
Approvals	UL, GS, CE, UKCA, CCC, RCM, PSE, KC, CB, FCC
Compliance	RoHS, PAHS, REACH, WEEE

Features Multi uses, 4-12V output voltages
Small and compact design
Stable output
Energy efficiency level VI
Completed protect function
Fire retardant plastic housing
Fixed pin or detachable pin optional
Various standard connector optional
Applications Audio & Video devices
Digital devices
Household appliances
Office electronics
Network devices
Security systems
Industrial equipments
Certificates and Approvals UL, GS, CE, UKCA, CCC, RCM, PSE, KC, CB, FCC
Protection Over voltage protection
Short-circuit protection
Over current protection
EMI Emission Radiated and Conducted Emission
FCC part 15
EN55032
GB9254, GB17625.1
EMS Immunity Electrostatic Discharge Immunity: EN 55035, EN 61000-4-2
Radiated Field Immunity: EN 55035, EN 61000-4-3
Fast Transient Immunity: EN 55035, EN61000-4-4
Surge Immunity: EN 55035, EN61000-4-5
6W series power adaptor certified status
DC cable & connector Cable : VW-1 80ºC 300V L=1500mm 2468 24AWG 2C
Connector:
Remark: Other cables and plugs per customer request.
Packing

Type	Pcs per Ctn	Gross Weight (kg)	Net Weight (kg)	Measrement (mm)	CBM	Container	Ctn container	Pcs per Container
UL	100	7.7	6.7	470*270*185	0.024	20FT	1680	168000
CCC	100	7.7	6.7	470*270*185	0.024	20FT	1680	168000
PSE	100	7.7	6.7	470*270*185	0.024	20FT	1680	168000
GS	100	8.2	7.2	470*345*185	0.030	20FT	1340	134000
KC	100	8.2	7.2	470*345*185	0.030	20FT	1340	134000
RCM	100	8.2	7.2	540*320*185	0.032	20FT	1260	126000
UKCA	100	8.9	7.9	540*320*185	0.032	20FT	1260	126000

Similar Products
Application

Company Brief Introduction Seanen is a technology company specializing in developing, manufacturing and marketing high quality AC/DC adaptors, switching power supplies, chargers. Being professional and dedicated to the industry, Seanen is aim to provide the highest standard products combined with extra safe, high efficiency, high stability, cost effective and environment-friendly.
Our standard products cover the full range items, from 0.5W to 200W output power. Safety approved including UL/cUL, TUV-GS, CE, UKCA, RCM, PSE, K-mark, CCC, and FCC etc. Compliant with DOE VI, RoHS, PAHs, REACH and WEEE.,
We can also offer customized service to design the optimal solution to meet the most exacting requirements that your applications demand and put into production promptly.
Based on first-class products, competitive price and excellent service, we believe it will be a long term business relationship once you work with us.

FAQ
1. Are your products compliant with efficiency level VI ?
A: Yes, our products are compliant with USA DoE VI, and EU CoC Tier2 as well.
2. Are your products compliant with RoHS ?
A: Yes, all of our products are compliant with RoHS, also REACH and PAHs.
3. Can I get a couple of samples?
A: Of course you are welcomed to get samples for free.
4.What's the MOQ you accept?
A: MOQ is 2,000pcs.
5. What are the advantages of your products?
A: Our products have reliable quality with completed certifications and on time delivery. Besides, our integral manufacture (e.g.moulding, plastic injection, metals and cables making etc) can ensure our competitive price.
