Th6550 Dual Energy Middle Size X-ray Baggage and Parcel Inspection Security Screening Scanning Machine - OEM Design with Cheap Price From Biggest Factory

Product Description

Product Description

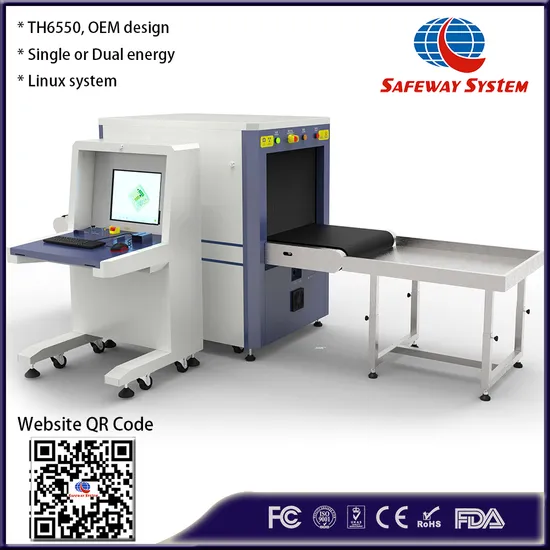

TH6550 Dual Energy middle size Security Introscope X-ray Machine Baggage Scanner and Luggage Scanner- FDA Approved & Biggest Factory
TH6550 dual energy X-ray Baggage scanner is a new type of security inspection equipment that uses X-ray to penetrate and check baggage and cargo without unpacking examination. It is applicable for security checks on briefcases, parcels, express mail, hand luggage, and small parcels in government agencies, transportation, logistics, courts, procuratorate, prisons, embassies, factories, schools, hospitals, gymnasiums, exhibition halls, and entertainment venues etc.
TH6550 belongs to the Linux product familay, which is totally designed and manufacturer by our own company. Every year, we invest a large amount of labors and resources in the development of new technology and models. We own all the copyrights and patents, from the outlook design to the software. Safeway system is the market leader and one of the biggest manufacturers in China Product Parameters

Product highlights * Linux operation system * ARM CPU * Digital signal and processor * Continous hard work for 10000 hours * Energy saving design * High penetration * Good quality images
Physical Specifications
Unit weight (kgs)	450
Unit size (mm)	2194.7(L)*902(W)*1362.5(H)
after packed in wooden pallet -
Gross weight (kgs)	650
Packing size	#1: 237*105*166cm
	#2: 86*87*142cm
General Specifications
Tunnel size(mm)	658(L)*495.5(W)
Conveyor Speed(m/s)	0.2
Conveyor height(mm)	700
Conveyor Max Load(kgs)	200
X ray dose per each inspection	Typical 2.0 μGy, guarantee 2.5 μGy
X ray leakage	Typical 1.0 μGy/h, guarantee 1.5 μGy/h
Penetration	Typical 30mm, guarantee 27mm
Wire Resolution	Typical AWG38, guarantee AWG36
Penetration Resolution	Typical AWG30, guarantee AWG30
Spatial resolution:	Typical dia1.0mm,Vertical: dia1.0mm; Guarantee dia1.3mm,Vertical: dia1.3mm;
Power Consumption	0.5KVA
Noise	< 60 dB
Film Safety	Guarantee ASA/ISO1600 Film
X-ray Generator (single)
Anode Voltage	140 KV
Anode power	0.5mA
Generate angle	80 degree upward
Generate direct	from bottom to top
Cooling / Duty Cycle	Oil Cooling /100%
Brand	made by ourself
Software System
Self-test after power on	Self test after power-on, and show the problem ( 1. emergency stop, 2. housing panel is open 3. calibration fail 4. detection system error 5. hard drive is missing)
Image Display	High resolution of 1024 * 1280 pixel;
Image Enhancement	Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall	30 images recallable, retrieval
Image Archive	Up to 500,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Real-time Curve	Real-time curve to see if the detection system and other components work well
Others	Fault diagnosis, system time setting, detection blind dots delete, x-ray source setting(analoge or digital), alarm setting, images setting, software register, user management, TIP report, data setting(machine working time, x-ray source working time, baggage counter, etc.)
Operating Environment
Operation temperature/Humidity	5ºC-40ºC / 0%-90%(non-condensing)
Storage Temperature/Humidity	-40ºCto 70ºC / 5%-95%(non-condensing)
Operation Power	220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
Computer and other
Monitor	High Resolution Color, LCD Accord, 17inch
Hard Disk	SEAGATE 500G 3.5"
CPU	Cortex A9
Storage	1GB
Main board	IMX6_mainboard-V030, made by Safeway
Compliance
International	* ISO19001 ; ISO14001 ; OHSMS18001 ; * CE * USA FDA * Maximum X-ray leakage of less than 5 μSv/h(0.5mR/h) measured at 5cm from any external surface. (European standard - less than 1 μSv/h(0.1mR/h) measured at 10cm from any external surface)
National (China)	* Health Inspection Report * Computer Software Copyright Registration Certificate * Software Product Registration Certificate * Radiation Safety Certificate from Ministry of Public Security * Quality Certification from Safety andElectronic Products Quality Inspection Center * Design pantent certification: Patent No. : 201020700245.2 ; Patent No. : 201020700245.8 ; Patent No. : 201020700256.0

Certifications
Installation Instructions

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

X-Ray Baggage Scanner Product Index
NO.	Model	Remarks
		Tunnel Size	Generator	View	Brands of Generator
1	AT 5030C	500*300mme	single	one	self made
2	AT 6040B	600*400mm	single	one	Spellman 160 Kv
3	AT 6550B	650*500mm	single	one	Spellman 160 Kv
4	AT 8065B	800*650mm	single	one	Spellman 160 Kv
5	AT 10080B	1000*800mm	single	one	Spellman 160 Kv
6	AT 10080D	1000*800mm	two	two	self made
7	AT 10080T	1000*800mm	three	three view / 3D	self made
8	AT 100100B	1000*1000mm	single	one	Spellman 160 Kv
9	AT 100150B	1000*1500mm	single	one	Spellman 200 Kv
10	AT 150180B	1500*1800mm	single	one	Spellman 200 Kv
11	AT 2300	Portable and mobile x-ray scanner
Available and customizable models
NO.	Model	Remarks
		Tunnel Size	Generator	View	Brands of Generator
1	AT 100100D	1000*1000mm	two	two	self made
2	AT 100100T	1000*1000mm	three	three view / 3D	self made
3	AT 150100B	1500*1000mm	single	one	Spellman 160 Kv
4	AT 100150D	1000*1500mm	two	two	self made
5	AT 150180D	1500*1800mm	two	two	self made
