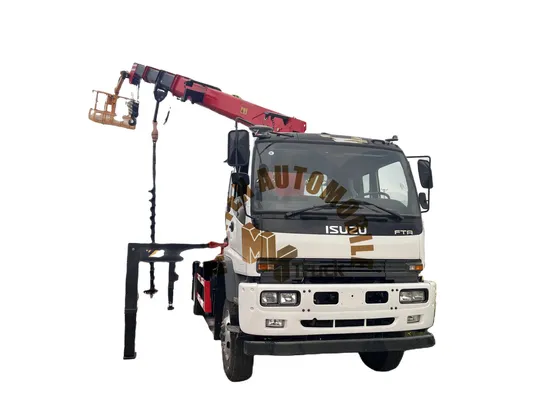

Isuzu Fsr 4X4 Boom Truck with Drilling Pipe for Crane Truck Operated on Manlift Basket

Product Description

*ISUZU FSR 4x4 Boom truck with drilling pipe for crane truck operated on manlift basket *
Products--100% First Class!
Transportation--100% Convenience, Efficient!
Services--24hours service! --------------------------------------------------------------------------------- Our factory is professional manufacturer in truck area,
guarantee all trucks Brand-New and High-Quality.

» I.Product Describution:
Manufacturer: Hubei Manten Automobile Co.,Ltd.

1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a good after-sell service
4.we have strong professinal design team
5.promptly delivery. any order is welcome.

We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions
Pre Sale Service: 1. Technical Communication With Engineer
2. Factory and Workshop Visit.
3. Making Design Drawings according to customer request.
After Sale Service: 1. Customizing Installation & Commissioning
2. Spare Parts Support
3. Technical Support
Chassis: According to your request, choose various chassis and refit it to truck.,
such as:ISUZU,DONGFENG,SINOTRUCK,JAC,SHACMAN,FOTON,FAW ...
Upper Body: Can supply only upper body without chassis according to your chassis drawing , design function parts.
Crane brand: China various famous brand
Customization: Communicate with engineer, making design drawings and produce customized products.
Spare Parts: Supply all kinds of spare parts on chassis and upper body, replace main parts on trucks as tank and box.
Warranty: From the date of receiving, in normal using within 30,000 km or within one year, we will repair for free,Technical support and commissioning are free always.
» II.Product Parameter:

Technical parameter of chassis
Chassis Model	QL1160	Dimension(LxWxH)	9500x2490x3650mm
body dimension(LxWxH)	6000x2300x550mm	Driving type	4x4
GVW	16000kg	Rated loading capacity	10,000kg
Curb weight	7750kg	Cabin	3 seats,with A/C
Engine	Type	Isuzu engine
	Rated Power	139kw/190HP
	Fuel type	Diesel oil
	Emission standard	Euro 5
Max speed	90(km/h)	Approach/departure angle	30/24°
Front suspension	1250mm	Rear suspension	2650mm
Loading of front axles	6300kgs	Loading of rear axles	13000kgs
Wheel base	4700mm	Gearbox	6 forwarder & 1 reverse
Tyre	9.00-20	Tyre number	6+1(spare tyre)
Color and printing	Can according to customer's requests
Technical parameter of crane(10T )
CRANE Model	SPS25000	Max Lifting Capacity(kg)	10000
Lifting Height(m)	15.1
Max Lifting Moment(T.M)	25	Recommend Powe(kw)	28
Max Oil Flow of Hydraulic System(L/min)	55	Max Pressure of Hydraulic System(MPa)	27
Oil Tank Capacit(L)	160	Rotation Angle	all Rotation
Crane Weight(kg)	3300	Installation Space(mm)	1200
Remote control	Truck's engine switch on/off from command post
Drilling machinery	With Drilling pipe

Crane mounted cargo truck also called truck mounted crane, truck with crane,lorry mounted crane, truck mounted boom lift, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck is used to lift the cargo, load, transport and unload heavy stuff.
There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic boom crane: 2T, 3.2T, 4T, 6.3T, 8T, 10T, 12T, 14T, 16T, 25T.
Knuckle boom crane: 1T, 2T, 3.2T, 4T, 5T, 6.3T, 8T, 10T, 12T, 14T, 16T, 25T.
» III.Product Details:
3.1.Crane truck apperance picture:
3.2 Automatic moment limiter:
Automatic moment limiter has the function of self testing and alarming.
3.3 Equipped with wireless remote control:
3.4 Equipped with upper opeation and ground operation:
3.5 DIGGING OPERATION:
» IV.Company Intorduce:
» V. Professional packing and transprotation:
Thick wax polished on products before shipping to protect. Use container, RORO/bulk ship or others as your requirement. We provide transportation insurance to guarantee the new and great condition of products for customers.
YOU ARE ALWAYS WELCOMED TO VISIT OUR FACTORY!
