Factory Direct rerigerator Magnetic Stripe production line

Product Details

Product Description

Product Description

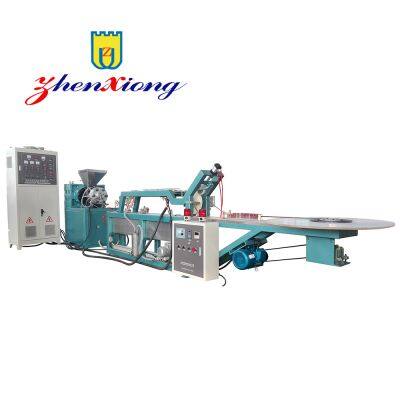

Rerigerator Magnetic Stripe production line for door gasket
Professional refrigerator magnetic stripe production line
Magnetic Stripe production line for rerigerator door gasket
Combining foreign advanced technology, We developed magnetic strip extruder for producing strip used as refrigerator door-seal. The machine is newly designed, easy to maintain, it has suitable structure, work reliable. The production is automatic, productivity, and high quality. By this machine, 10,000m2 magnetic strip (section 9X2mm2) can be produced per day. The production process is entirely automatic, extruding, magnetizing and rolling can be done at the same time. The machine is suitable for new built, expanding and reforming factories.
Magnetic Stripe production line for rerigerator door gasket

Technical parameters
Screw diameter	ø60 mm
L/D	9:1
Compressing ratio	1.7
Screw rotation speed	: 0-24 r/min (adjusted according material)
Driver motor:	15KW
Haul-off power	0.55KW
Winder power	0.37 KW×2
Heating power	2.9KW
Churning power hopper	0.37KW
Volume of cooling tank	1.8 m3/h
Commonly extrusion speed	6-10m/min
Barrel and screw material	Alloy
Temperature range	0-120ºC
Barrel temperature in working	60-100ºC (not pre-heating temperature)
Total installation capability	about 25KW
Cooling tank materia	stainless steel
Water pump length	3M
Magnetizing capacitance	6000 micro farad
Magnetizing voltage	6000 micro farad
Magnetizing power	500V
Magnetic field	600-700GS

Magnetic Stripe production line for rerigerator door gasket
IF you are intrested in this kind of plastic machinry or even other kinds of extruder units which we can supply,pls feel free to contact us,we'll be glad to give you our best service.
1.Payment terms:T/T,Westem Union,PayPal
2.Payment Condition:30% deposit in advance. 70% balance before delivery.
3.Delivery time:depends on detailed machine
4.Packing:Wooden case with plate.
5.Shipment:By Sea.
