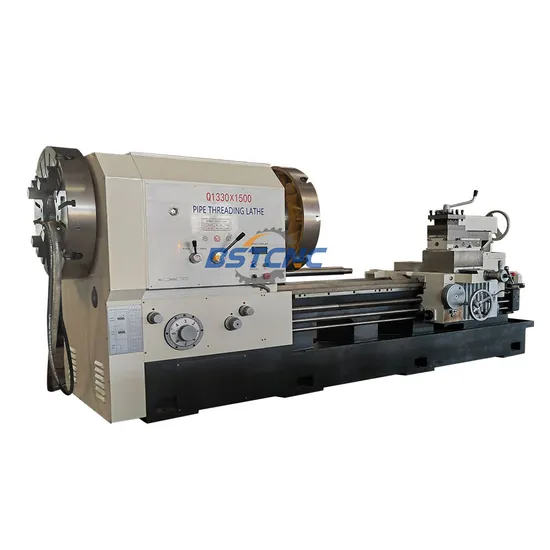

Oil Country Double Manual Chuck Heavy Duty Q1330 Pipe Threading Lathe
| US$44,500.00-55,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Q1330
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Station Maunal Turret
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Condition
New
Max Dia.Swing Over Bed
800mm
Max Dia.Swing Over Cross Slide
470mm
Max.Length of Work-Piece
1500mm
Maximum Machining Length
1250mm
Pipe Threading Range
φ80-295
Width of Bed
600/650mm
Spindle Bore
305mm
Spindle Center Height
400mm
Power of Spindle Motor
15kw
Spindle Speed
Vf2 Steps 20-100/100-300
Traverse of Cross Slide
430mm
Max.Traverse of Turret
250mm
Tailstock Quill Travel
250mm
Tailstock Quill Dia/Taper
100mm /Morse No.6
Chuck
φ630 3-Jaw Chuck φ780 4-Jaw Chuck
Transport Package
Plywood Case with Steel Base
Specification
12.5CBM
Trademark
BST
Origin
China
HS Code
8458190000
Production Capacity
1000/Year
Packaging & Delivery
Package Size
395.00cm * 175.00cm * 180.00cm
Package Gross Weight
7200.000kg
Product Description
Product DescriptionThis series of pipe thread lathes is mainly used to process internal and external threads of pipes, and they can also be used as an ordinary lathe to process the outer circle, inner hole, and end face of shaft, pipe, and disk parts. This machine tool is widely used in the petroleum industry, which can process and repair parts such as drill pipes, joints, and casings. It is also used for the thread processing of various pipes and drill pipes in industries such as coal, chemical engineering, water conservancy, and geological exploration.
Product Parameters
| Item | UNIT | Q1330 |
| Max dia.swing over bed | mm | 800 |
| Max dia.swing over cross slide | mm | 470 |
| Max.length of work-piece | mm | 1500 |
| Maximum machining length | mm | 1250 |
| Pipe threading range | mm | φ80-295 |
| Width of bed | mm | 600/650 |
| Spindle bore | mm | 305 |
| Spindle center height | mm | 400 |
| Power of spindle motor | KW | 15 |
| Spindle speed | RPM | VF2 STEPS 20-100/100-300 |
| Z axis feed grade/range | Mm/r | 32/0.095-1.4 |
| X axis feed grade/range | Mm/r | 32/0.042-0.7 |
| Carriage rapid traverse speed | mm/min | 3740 |
| Cross slide rapid traverse speed | mm/min | 1870 |
| Metric thread grade/range | mm | 22/1-15 |
| Inch thread grade/range | T.P.I | 26/14-1 |
| Traverse of Cross slide | mm | 430 |
| Max.traverse of turret | mm | 250 |
| Tailstock quill travel | mm | 250 |
| Tailstock quill Dia/taper | 100mm /Morse NO.6 | |
| Chuck | φ630 3-jaw chuck φ780 4-jaw chuck | |
| Overall dimensions(L*W*H) | mm | 3850x1650x1600 |
| Machine weight | T | 6.5/7.2 |
Standard configuration:
1-With 3 jaws double manual chuck (630mm) ;
2-With 4 station manual tool post and manual tailstock ;
3-With Whole casting bed ;
4-Voltage 380V/220V/415V ,3 Phase;
Optional configuration:
1-Steady rest ,follow rest , back steady rest;
2--Digital readout ;
3- Processing length: 2000mm,3000mm,4000mm;
