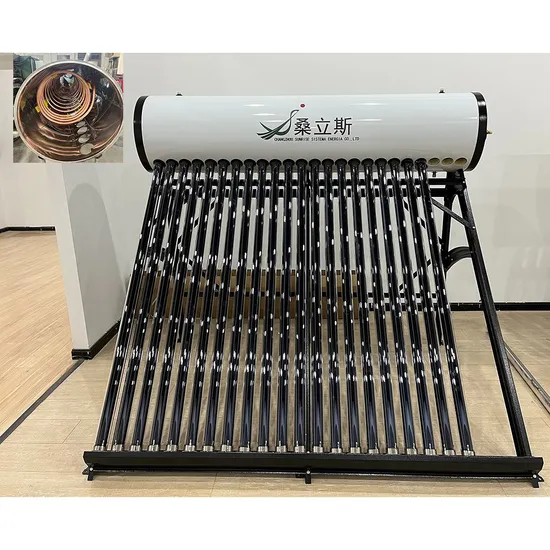

Pressurized Integrated Copper Coil Solar Water Hot Heater

Product Description

Pressurized Integrated Copper Coil Solar Water Heater
Product Description
Working Principle
The main working principle adopts heat exchanging technology.
1. Cold water inside the vacuum tube heated by sunshine, and then hot water go up to tank, cold water in tank flow into collector, cold and hot water form a natural circulation in solar water heater, the whole tank water will be hot water gradually.
2. Then hot water inside water tank transfer heat to water inside copper coil, people use hot water directly from copper coil.
Specialty
1. Hot water inside copper coil is fresh without secondary pollution; it can be used as portable water.
2. Copper coil inside tank can take pressure and connect tap water directly.
3. Working principle is more advanced than thermosyphon solar water heater.
4. Economical type in compact pressure systems.
5. Simple structure and easy installation.
6. Stable operation and quality.
Technical specification
1.Outer tank material: SUS304-2B /316L stainless steel or powder coated color steel
2.Inner tank material: 0.5mm thick SUS304/316L food grade stainless steel
3.High purity copper for the heat exchanger coil
4.Frame material: 1.2mm thickness stainless steel or galvanized steel
5.Insulation material: 55mm thickness polyurethane
6.Reliable, efficient, twin-glass Al-SS-CU solar vacuum tubes
7.Designed to accept mains pressure cold water
8.Copper coil heat exchanger can be used as part of a closed or open loop system, providing heating to a main hot water tank
9.Easy plug-in installation

Product Parameters

Model	Specification			Quantity
	Vacuum Tube		Water Tank	20GP/40GP/40HQ
	No.	Absorb area(m2)	Capacity	(sets)
	(pcs)
SR-PHC/PHS-15	15	2.08	125L	45/89/108
SR-PHC/PHS-18	18	2.57	150L	38/77/93
SR-PHC/PHS-20	20	2.85	165L	35/70/85
SR-PHC/PHS-24	24	3.41	200L	30/60/73
SR-PHC/PHS-30	30	4.25	250L	24/49/59

Type	Evacuated Tube
Application	Outdoor, Hotel, Garage, Commercial, Household
Power Source	Solar
App-Controlled	Yes
After-sales Service Provided	Free spare parts, Onsite Installation, Return and Replacement, Overseas Call Centers
Warranty	5 years
Installation	Freestanding
Place of Origin	Jiangsu, China
Brand Name	SUNRISE
Model Number	SR-PHC/PHS
Housing Material	Stainless steel
Inner tank material	SUS304-2B/SS316L
Outer tank material	Painted Steel/SUS201/SUS304
Item	Vacuum Tube Solar Collector
Frame	Stainless Steel SUS201-1.2mm
Usage	Home Bathing
Tube	Copper Heat Pipe Vacuum Tube
Tank capacity	100-300
Product Keywords	Pressure Termotanques Solares
Insulation	55mm Polyurethane Layer
Heat Source	Soalr
Packaging Details	CARTONS
Port	SHAGNHAI
