25t Hydraulic Traveling Head Cutting Machine/Die Cutting Machine/Punching Machine/Cutting Press

25t Hydraulic Traveling Head Cutting Machine/Die Cutting Machine/Punching Machine/Cutting Press

US$10,000.00-20,000.00 1 Set (MOQ)

Basic Info.

Model NO.
DP-25T-C
Power Supply
Hydraulic
Applicable Material
Fabric, Rubber, Plastic, Genuine Leather, Artificial Leather
Function
Cutting Machine
Max Feeding Width
1500mm
Head Cutting Size
400*400mm
Cutting Force
35 Ton
Machine Name
40ton Hydraulic Moving Head Cutting Press/Cutting
Name
25t Hydraulic Traveling Head Cutting Machine/Cutti
Transport Package
Wooden Case Packing
Specification
1500*500mm
Trademark
DAPENG
Origin
China
HS Code
844110000
Production Capacity
100 Set Per Year

Product Description

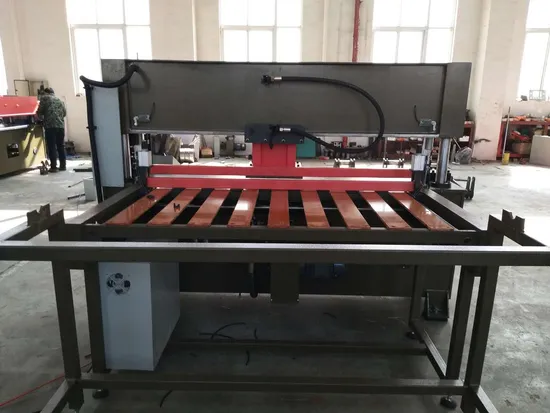

Hydraulic Travelling Head Cutting Machine
25T Hydraulic Traveling Head Cutting Machine/Cutting Press/Punching Machine/Die Cutting Machine
The working principle of the hydraulic cutting machine is down press to the mould,to cut material by dies / moulds.
1.travel head cutting machine pressure:25Tons-50Tons,Cut material by dies / moulds.
2.Hydraulic,manual simple operated,material precision 0.01mm,no burned.
3.Two Cylinders,Four Column,Plane cutting press machine
4.Usually cut for shoe uppers,insoles,bags,purse,soft toys,abrasive tools,fabric ect.
5.Can make big cutting area:610*1600mm or as required.
Mainly used for die cutting leather and leather products,plastic,rubber,sponge,foam,EVA,PVC,cardboard, paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials, and other non-metallic materials in various industries;Extremely suitable for cutting multiple layers of material at one time.
Model DP-250KN 25T Hydraulic Traveling Head Cutting Machine/Cutting Press/Punching Machine/Die Cutting Machine
Body structure 4 double-precision balancing mechanism link
Pneumatic clamping automatic feeding station
Hydraulic type
Double Cylinder
Maximum blanking force 25 tons
Stroke 35-165mm
Main motor power 3KW
Feeding motor power 1.5KW
Moving head motor power 1.5KW
Cutting area 2000*500mm
Effective cutting width 1500mm
Cutting speed 60mm/s
Fast drop speed 80mm/s
Translational velocity 80mm/s
Moving head size 400X400mm
name 25T Hydraulic Traveling Head Cutting Machine/Cutting Press/Punching Machine/Die Cutting Machine
Warranty 12 month
Payment term L/C at sight / TT advance

maintenance:
The product warranty for one year warranty period, the buyer must have regular maintenance staff machine,
Machine damage due to improper operation of the outside world and human factors are not covered by warranty.
After a year of free maintenance, but the cost of freight and parts buyer themselves.
Customer repair within 24 hours to give back, for home repairs, the buyer within 48 hours to the installation place.

Features:
1. Gantry frame structure made of profile steel is adopted, with high intensity and without deformation.
2. The cutting head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.
3. The hydraulic system specially designed is featured by low noise and low oil consumption.
4. The lifting position of pressing board can be freely set to reduce idle travel and enhance work efficiency.
5. The movement of cutting head is controlled by automatic speed variation to realize flexible movement with high speed and accurate positioning and without impact.
6. Differential oil way is adopted to allow rapid and convenient cutting.
7. Products of special specifications can be customized.
