Water Ring Pump Suitable for Pumping out Gas and Water Vapor

Water Ring Pump Suitable for Pumping out Gas and Water Vapor

US$235.00-7,850.00 1 Piece (MOQ)

Basic Info.

Model NO.
2BV
Oil or Not
Oil Free
Structure
Water Ring Vacuum Pump
Exhauster Method
Entrapment Vacuum Pump
Vacuum Degree
High Vacuum
Work Function
Mainsuction Pump
Working Conditions
Dry
Noise
75 dB
Power
2.2kw
Ultimate Vacuum
Less Than 0.001 Mbar
Pressure Limit PA
3300
Transport Package
Metal Plattet/Standard Package
Trademark
KN
Origin
Jinan China
HS Code
8414100090
Production Capacity
50000

Product Description


Product Description

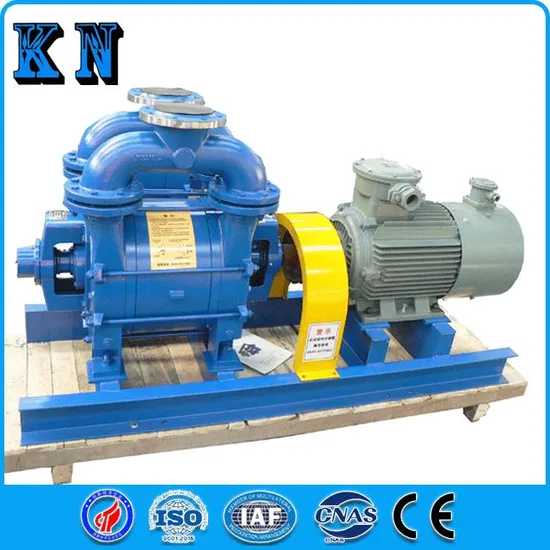

2BV series water ring vacuum pump is suitable for pumping out gas and water vapor. The suction pressure can reach 33mbar absolute pressure (97% vacuum degree). When the water ring vacuum pump works for a long time when the suction pressure is close to the limit vacuum (saturated vapor pressure of working fluid), its protection pipe shall be connected to protect the pump. O2bv series water ring vacuum pump is the latest generation of energy-saving products. With its excellent performance and many advantages, it will comprehensively replace SK and 2SK series water ring vacuum pumps and W, WY and WL reciprocating vacuum pumps with the same energy.
Our Advantages
1.The direct connection design of the motor saves space, is easy to install and maintain.
2.All adopt mechanical seal as standard configuration.
3.It is equipped with a cavitation protection pipe interface. If it works for a long time under the limit pressure, it will automatically open the cavitation protection pipe interface, which can maximize the suction effect and eliminate the cavitation sound, and effectively protect the vacuum pump.
4.The whole series is equipped with stainless steel impeller, which improves the corrosion resistance of the vacuum pump.
5.The unique flexible exhaust port design will not produce over compression, ensuring the best efficiency of the vacuum pump within its performance range.
Product Parameters
Type Maximum air volume
m3/min
Pressure limit Pa power kW revolution rpm Motor explosion-proof grade Water consumption
L/min
noise dB(A) weight
kg
2BV2060-EX 0.45 3300 1.1 2880 d II BT4 2 62 39
2BV2061-EX 0.87 3300 1.5 2880 d II BT4 2 65 45
2BV2070-EX 1.33 3300 2.2 2880 d II BT4 2.5 66 66
2BV2071-EX 1.83 3300 3 2880 d II BT4 4.2 72 77
2BV6110 2.75 3300 4 1450 d II BT4 7 63 153
2BV6111 3.83 3300 5.5 1450 d II BT4 8.5 68 208
2BV6121 4.68 3300 7.5 1450 d II BT4 10 69 240
2BV6131 6.68 3300 11 1450 d II BT4 15 73 320
2BV6161 8.3 3300 15 970 d II BT4 20 74 446
Detailed Photos

General Manager Speech
Deeply cultivate the vacuum technology, and research,develop and manufacture the vacuum equipment to provide the best solution in the vacuum field and make the vacuum application easier.
Company Profile
Shandong Kaien Vacuum Technology Co., Ltd. is a high-tech enterprise integrating R & D, production and operation of vacuum equipment. The company has strong technical force, excellent equipment and considerate after-sales service. The product manufacturing process is managed in strict accordance with IS09001 quality system. It mainly produces and sells screw vacuum pump, roots pump, claw vacuum pump, runoff vacuum pump, scroll pump, water ring vacuum pump, vacuum unit and other vacuum systems.
New plant planning
The company's products have been for a number of food, medicine, refrigeration, drying plants and a number of transformer related equipment manufacturers for vacuum equipment. The products are widely used in vacuum drying and dehydration, kerosene vapor phase drying, vacuum impregnation, vacuum metallurgy, vacuum coating, vacuum evaporation, vacuum concentration, oil and gas recovery, etc.
High precision machining equipment
The company cooperates with many scientific research institutions and universities, such as Shandong University, China University of petroleum, Shandong Institute of mechanical design, etc.with colleges and universities to research and develop core technologies, and owns dozens of independent intellectual property patents.Our technology is leading, the product quality is stable, the product has a good reputation in China's domestic market, is sold all over the country, and is exported to Europe, America, Africa, the Middle East and Southeast Asia,We adhering to the basic tenet of quality, reputation and service, the company takes leading-edge technology of vacuum pump as its own responsibility, and wholeheartedly serves customers of vacuum equipment application in various industries with rigorous working attitude and professional working style.

Product quality wins consumer cooperation
In shipment Identification certificate of high-tech enterprise ISO 9001 Welcome to send your needs, we will provide you with the best service, provide the greatest help!!!
