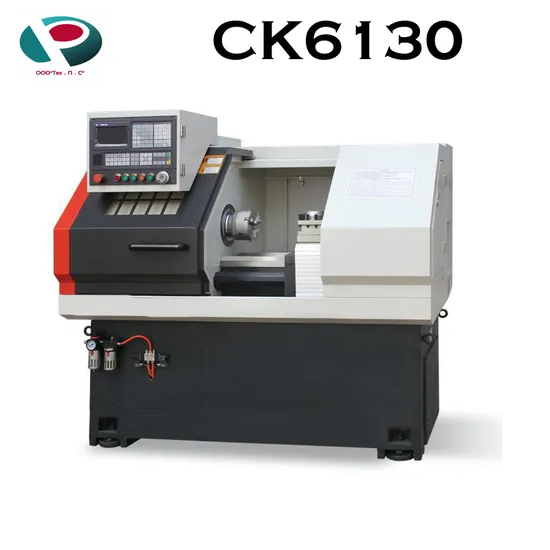

Jepps Ck6130 Flat Bed CNC Lathe Machine
| US$9,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Ck6130
Application
Metal
Process Usage
Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Maximum Turning Length
230mm
Diameter of Spindle Through Hole
48mm
Precision
High Precision
Color
Customized
CNC Controller
GSK, Siemens, Fanuc
Spindle Speed Range
2500r/Min
Transport Package
Export Package
Specification
2200*1160*1620mm
Trademark
Jepps
Origin
China
Production Capacity
1000 Pieces/Year
Product Description
CNC Lathe use:Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface,end face, such as processing, and also can process the single and multiple threads in metric, inch and otherstandards.
Product main technical specification:
| project | unit | CK6130 | ||
| Max. swing dia. over bed(mm) | mm | Φ300 | ||
| Rail span in X direction | mm | 160 | ||
| Rail span in Z direction | mm | 240 | ||
| Max. Swing dia. over slide | mm | Φ100 | ||
| Top distance | mm | 350 | ||
| Maximum turning length | mm | 230 | ||
| Center high | Distance from bed | mm | 150 | |
| from the ground | mm | 1065 | ||
| Diameterspindle through hole | mm | Φ48 | ||
| Bar diameter | mm | Φ45 | ||
| Equipped with hollow chuck tie rod through hole | mm | Φ40 | ||
| Spindle end type | A2-5 | |||
| Chuck | mm | 6' | ||
| Spindle taper hole taper | No | chuck | ||
| Spindle maximum speed | rpm | 2500 | ||
| Number of tool rows | 3 | |||
| CNC system | Syntek 6TA | |||
| Lead screw model | X axis | mm | FDC2506-P3 | |
| Zaxis | mm | FDC3210-P3 | ||
| X/Z rapid movement speed | m/min | 6/10 | ||
| X-direction travel | mm | 280 | ||
| Minimum setting unit | mm | 0.001 | ||
| Main engine power | KW | 5 | ||
| Total power | KW | 10 | ||
| Weight | Kg | 1700 | ||
| Dimensions (L× W × H) | mm | 2200×1160×1620 | ||
CNC Lathe Features:
FAQ: 1.Q: Which trade term I can choose? A: You can choose FOB,FCA 2.Q: How can I get quotation from you? A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday. 3.Q: how can I make the payment? A: You can pay by T/T . You can also pay to my company business bank account. 4.Q:What is your delivery time ? A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not. We want to know: Please tell us your specific purchasing requirements, so that we can make specific quotations.
