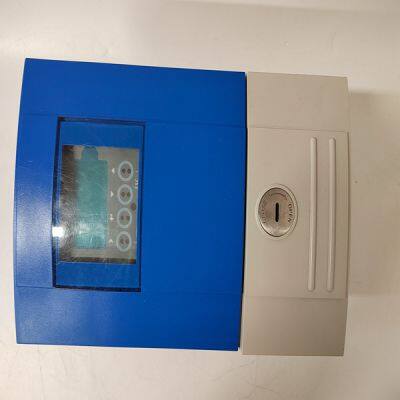

KROHNR OPTIFLUX4300W IFC300W

Product Details

Product Description

Product Description
Brand:KROHNR
Type:OPTIFLUX4300W IFC300W
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Unit error detected. Controlled by Control Software. Set and cleared by the hardware during controller Reset. R(un) /Green Operating. Controlled by the Control Software. Cleared by the hardware during controller Reset. 100MBit/s is ON A valid connection with100 MBit/s is established when Rx Tx/Yellow is flashing. 100MBit/s is OFF A valid connection with10 MBit/s is established when Rx Tx/Yellow is flashing. RxTx LED is ON A link to the corresponding Ethernet device is established. No Ethernet packages are sent/received RxTx/Yellow flashing A link to the corresponding Ethernet device is established. Ethernet packages are sent/received. RxTx LED is OFF A link with the corresponding Ethernet unit is not established PRIM A yellow LED for indicating the primary unit in redundant configuration. DUAL The yellow LED indicates the redundant configuration.
Type Ethernet unit. Protocol FOUNDATION Fieldbus High Speed Ethernet, TCP/IP. Communication speed 10 Mbit/s / 100 Mbit/s defined in IEEE 802.3 100baseTX. Status indicators Running normally: Green. Exceptional fault: Red. One traffic indictor - RxTx - controlled by traffic pace. Connector RJ45 Current consumption (from CEX-Bus 24 V DC) 100 mA typical (150 mA max.). Power dissipation 2.4 W typical. Protection Rating IP20 according to EN60529, IEC 529. Weight 700 g (1.5 lb) (package CI860K01with CI860 and TP860). Dimensions W 59 x H 185 x D 127.5 mm (W 2.9 x H 7.3 x D 5.0 in)Key Features • CEX-Bus interface for communication to AC 800M • LED indicators for R(un), F(ault), Communication Error, Primary (Bus Master), and Dual (redundancy) • Motorola MCF5307 Microcontroller running at 32 MHz • 2 MByte Flash memory for code • 8 MByte SDRAM for configuration and dynamic data, also used as Dual Port Memory between CI862 and AC 800M • Power supply from the CEX bus +24V supply with DC/DC converters to +5V, +3.3V, and +2.5V • Hand Held Monitor Port used for reading Local I/O Block • Field bus termination switch
