Factory Price Full Color Transparent LED Display for Glass Window Wall

Product Description

Product DescriptionProduct Introduction
LED side light box screen adopts modular design, with transparent display, fast installation, energy saving and environmental protection, etc.; it can be installed by hanging and vertical installation, etc. There are several standard sizes of 1000x1000mm, 1000x500mm, 500x500mm. Widely used in glass curtain walls, large shopping malls, floor-to-ceiling windows, TV parties, large entertainment programs and other scenes.
Characteristics:
(1) Does not affect light: 75% permeability.
(2) Modularity: borderless DIY free splicing.
(3) wide viewing angle: 160 ° viewing angle, look down elevation angle: 130 °
(4) Brilliant colors: high contrast ratio, high refresh rate.
(5) Can be customized according to the curtain wall structure, boxed design, easy to install and maintenance.
(6) all aluminum structure box, box structure for aluminum alloy after anodic oxidation process, the weight of the treatment is only 9KG/, with good weather resistance.
(7) Energy saving and environmental protection, no auxiliary cooling equipment, natural air cooling, no noise.
(8) After installation, it does not affect the indoor lighting and the overall architectural style.
(9) Brightness ≥ 5500CD, low power consumption, the use of power consumption only to 240W/.
(10) Bright colors, long life, service life up to 100,000 hours, good cost performance.
(11) Can be suspended, the upper and lower fixed frame can be used with the same color of the glass frame edge, perfect seamless splicing.
Technical Characteristics
LED side luminous transparent screen adopts LED transparent screen special lamp beads, when the screen is working, the lamp beads are luminous on one side of the light board, which is side luminous. The case structure is aluminum alloy after anodic oxidation process.
Product Parameters

Model Number	AC3.91	AC7.81	AC10.42	AC15.6
Pixel Pitch(W*H)	3.91mm*7.81mm	7.81mm*7.81mm	10.42mm*10.42mm	15.625mm*15.625mm
Optimal Sight Distance	4M-12M	8M-24M	10M-30M	15M-45M
Screen Transparency	80%	75%	80%	60%
Pixel Density ( dots/m2)	32768	16384	9216	4096
Maximum Power Consumption (W/m2)	800	800	700	600
Average Power Consumption (W/m2)	240	240	200	180
Cabinet Size (W*H*D)	1000mm*500mm *70mm	1000mm*500mm *70mm	1000mm*500mm *70mm	1000mm*500mm *70mm
Cabinet Resolution (W*H)	256*64	128*64	96 *48	64*32
Cabinet Weight	5kg	6kg	6kg	9kg
Brightness(CD/m2)	≥5500	≥5500	≥5500	≥5500
LED Light Beads	3510 RGB	3510 RGB	3510 RGB	3510 RGB
Refresh Frequency	≥3840Hz	≥1920Hz	≥1920Hz	≥1920Hz
IP Rating	IP30	IP30	IP30	IP67
Gray Scale	16bit	16bit	16bit	16bit
Scanning Mode	1/8	1/4	1/2	1/1
Screen Material	Aluminum Frame + Light Bar	Aluminum Frame + Light Bar	Aluminum Frame + Light Bar	Aluminum Frame + Light Bar
Display Interface	Terminal DIV/HDMI	Terminal DIV/HDMI	Terminal DIV/HDMI	Terminal DIV/HDMI
Working Environment	-10ºC~40ºC	-10ºC~40ºC	-10ºC~40ºC	-35ºC~80ºC
Installation Method	According to the site can be lifted, fixed installation method

Product PicturesTechnical Characteristics:
LED side luminous transparent screen adopts LED transparent screen special lamp beads, when the screen is working, the lamp beads are luminous on one side of the light board, which is side luminous. The case structure is aluminum alloy after anodic oxidation process.

There are several standard sizes of 1000x1000mm, 1000x500mm, 500x500mm. Cabinet Size:500mm*500mmProduct details of transparent screen
Product Case Diagram

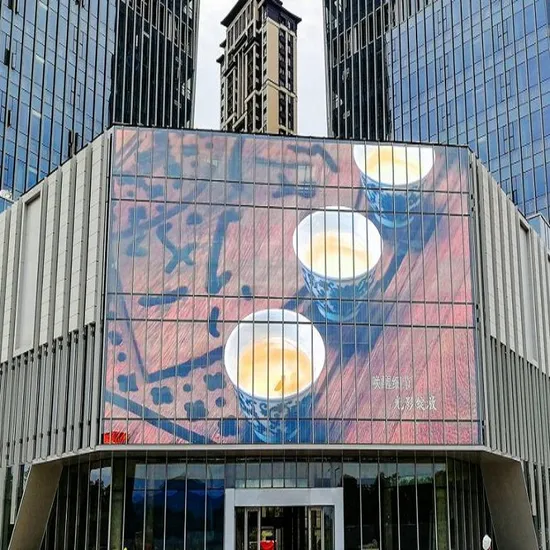

Transparent screens are widely used in glass curtain walls, large shopping malls, floor-to-ceiling windows, TV parties, large entertainment programs and other scenes. Project 1: Glass curtain walls Project 2: Large shopping malls
Project 3: Floor-to-ceiling windows
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are led display manufacturer.
Q: What kind of LED display do you offer?
A: Our products cover LED full color display for indoor and outdoor, rental LED display, LED advertisement display, LED stage display, LED sports display, LED irregular-shape display, customized LED display etc.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q: How can I get the technical support?
A: We support remote video control at now.
Q: What is your MOQ for LED screen order?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q: How to proceed an order for LED display?
A: First, let us know your requirements or applications.
Then, we quote according to your requirements or applications.
Third, customer confirms the design document and places deposit for formal order.
Last, we arrange the products.
Q: How about the freight cost?
A: The shipping cost depends on different weight. We will choose the cheapest and safest way according your order quantity.
Q: Do you have the products in stocks?
A: Yes, of course.
