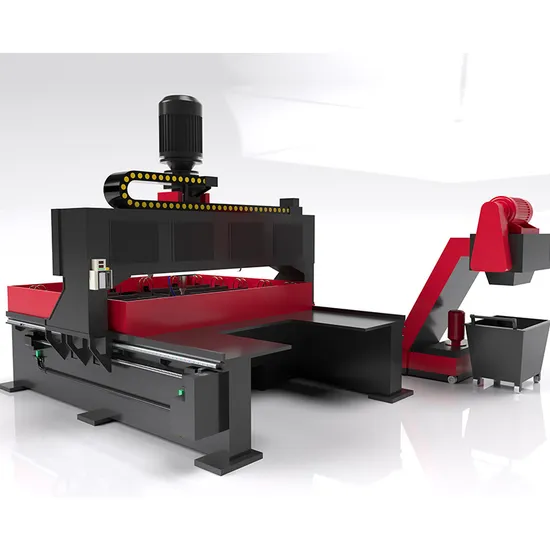

ZMDE Industrial Metal Processing Heavy Duty Drilling Machine for Steel H Beam Structure
------------------------------------------
>Cost-effective Equipment <
1. Constructed with robust materials, our equipment boasts a low failure rate, significantly minimizing maintenance costs. Key components such as ball screws, linear guides, hydraulic parts, electrical parts, servo motors, and frequency converters are sourced from renowned industry brands.
2. Features a CRT display for automatic chip removal, reducing manual cleaning time and effort.
3. Ensures high precision and high qualification rate of workpieces, substantially lowering consumable costs.
>Simple Operation, High Productivity <
1. User-friendly human-machine interface that generates automatic machining programs with clear and visual commands.
2. Accurate positioning and control through advanced CNC and PLC systems.
3. Hydraulic clamps firmly secure workpieces, operable via a convenient foot switch, enhancing ease of use and reducing labor.
4. Equipped with 12 fast hydraulic clamps distributed around the table, allowing simultaneous clamping of four groups of workpieces.
5. Small workpieces can be efficiently clamped at the four corners of the working table, significantly shortening production preparation times and boosting efficiency.
6. Optimized clamping of small workpieces at the table corners improves production preparation periods and overall efficiency.

> Guaranteed Quality, Wide Range of Applications <
1. Key components such as gantry, column, and table are made of solid materials, with the main machine weighing up to 6300kg, ensuring durability and stability.
2. Versatile across various industries, it is essential equipment for connecting plate processing.
3. Supports wide range of drilling diameters from 12mm to 50mm.
> Suitable for Various Production Scenarios <
1. Ideal for continuous production of multiple batches of single flat-type workpieces.
2. Capable of small batch production of diverse workpiece shapes including rectangular, round flange, and polygonal plates; can process two or four different specification plates simultaneously.
3. Efficiently produces stacked thinner sheets up to a maximum of 100mm drilled holes.
4. Through advanced software, it can automatically determine processing start and end points, capable of drilling through holes, blind holes, step holes, and chamfers.
> Production Process Automation <
1. Integrated line board for high automation, allowing automatic positioning as per the drilling program.
2. Optimizes feed volume according to various hole diameters.
3. Enables automatic and continuous large hole diameter processing and one-time molding.
4. Equipped with an automatic chip removal function for seamless operations.
Technical Parameters

Machine Configuration
High Precision CNC Radial Drill for H-Beam Processing
Model.		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Width (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1pc
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW

Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg
