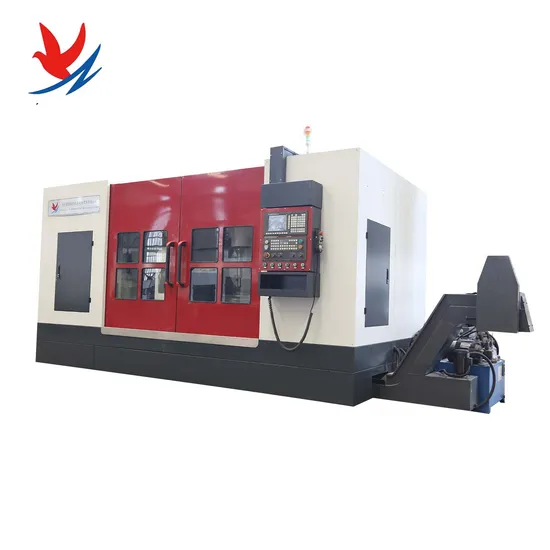

Factory Price Auto Tool Change 5-Axis CNC Screw Milling Machine in Sale

Factory Price Auto Tool Change 5-Axis CNC Screw Milling Machine in Sale

US$121,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
Vacuum pump cnc screw milling machine
Type
Tool Milling Machine
Object
Hardware
Structure
Bed type
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Normal Precision
Certification
ISO 9001
Condition
New
Max Length of Workpiece (mm)
6000
Machining Capacity
Duty, Heavy Duty
Spindle Bore(mm)
220
Positioning Accuracy (mm)
±0.02
Key Selling Points
Multifunctional
Video Outgoing-Inspection
Provided
CNC or Not
CNC
Grinding Length(mm)
380
Table Size(mm)
Actual Grind Length 380mm
Number of Axes
3
Voltage
380V
CNC Control System
Syntec, Fanuc, Siemens, Mitsubighi
Transport Package
Wooden Pallets and Plastic Sealing
Specification
5000X2000X2000
Trademark
kangnuo
Origin
Cangzhou
HS Code
8460241100
Production Capacity
200PCS

Product Description

SUMORE
Twenty years of experience in industry and trade integration. The fastest delivery cycle in the industry.
100% response rate of customer service online at any time.<view more>>>> Product Description
hot sales Precision ball screw direct connection servo motor Provided Metal CNC Machining High Accuracy LGX320x2000 Automatic Factory Price auto tool change 5-axis Cnc screw Milling Machine in sale for pump rotors
* MACH & GSK & SIEMENS & FANUC Programming Systems
* Professional Electronic System
* Upgraded PC-based Controller
* High Rigidity Guide Way & Bed Construction
* Powerful Main Motor & Reliable Servo Motor
* High Precision for All Axes Movements
* Automatic Tool Charger & Multiple Tool Positions
* Cabinet Door Opening System & Considerable Safety Signs
PRODUCT SPECIFICATIONS
Model
Unit
Lgx320-2000
Max. rotation diameter over bed
mm
Φ500
Max. rotation diameter over pallet
mm
Φ300
Max. workpiece length
mm
750/1000
Lathe bed width
mm
400
Main transmission form

Independent spindle
Speed mode

Frequency steplessspeed
Spindle speed range
r/min
150-2000
Spindle head form

8-D
Spindle bore
mm
Φ82
Spindle centering axial taper

1:4
Spindle taper

1:20
Chuck diameter
mm
Φ250
Main motor power
kw
7.5
Turret maximum stroke
mm
X: 320 Z: 1020
Fast-moving feed
mm/min
X: 6000 Z: 8000
Positioning accuracy
mm
X: 0.01 Z: 0.015
Dia. of tailstock quill
mm
Φ75
Tailstock quill stroke
mm
180
Taper of tailstock quill

MT5
Repeat positioning accuracy
mm
0.008
Section of turning tool
mm
25x25
Size (LxWxH)
mm
3200x1600x1700
Net weight
kg
3500

High Precision Automatic tool change Provided Metal CNC Machining High Accuracy LGX320x2000 Factory Price auto tool change 5-axis Cnc screw Milling Machine in sale for pump rotors With Ball Screw Transmission

GSK control operating system A2-6 4500 rpm spindle 8-station servo hydraulic tool magazine Automatic tool change in 2 seconds Ball screw and line track
A convex and a flat tailstock design
APPLICATION SCENARIOS
PRODUCT CONFIGURATION
A2-6 4500 rpm spindle GSK Control system 8-station servo hydraulic tool

Hydraulic chuck Ball screw and line track A convex and a flat tailstock design

Other Optional configuration
SYNTEC 22MA FANUC SIEMENS HNC808DM

Hot Sales Recommend Products
No. Product Name Specifiations Stock Qty Stock price
1 Kangnuo Nxk350 Milling CNC Machine CNC Thread Whirling Machine 3000-8000mm 2 <view more>>>
2 Kangnuo Crm-260 CNC Shaping Grinding Machine 2000-3000mm 1 <view more>>>
3 Kangnuo Lgm140-2000 5 Axis CNC Spiral Rotor Grinder CNC Grinding Machine 1500-5000mm 3 <view more>>>
4 Kangnuo Lgx320-2000 CNC Spiral Rotor 5 Axis Linkage Milling Machine 2000-6000mm 2 <view more>>>
5 Kangnuo CNC Machine Design 3 Axis Screw Milling Machine 1000-10000mm 5 <view more>>>
6 Kangnuo CNC Special Roots Pump Rotor Milling Machine 3000-6000mm 6 <view more>>>
7 Kangnuo Lgxm350 CNC Spline Milling Grinding Machine 1000-4000mm 2 <view more>>>
8 Kangnuo Internal Outernal Thread Milling Cutting Processing Machine 1000-9000mm 10 <view more>>>
9 2022 5 Axis Kangnuo Ground Marble Plane CNC Camshaft Milling Grinding Machine 1000-7000mm 5 <view more>>>
10 2022 Kangnuo Stock Turning Milling Compressor Rotors 4 Axis T-Shape Bed CNC Milling Machine 1000-10000mm 20 <view more>>>
11 2022 Kangnuo Stock 5000mm Screw Milling Machine for Extrusion Industry 2000-10000mm 14 <view more>>>
12 2022 Kangnuo Stock 2000mm screw processing 100 diameter small screw milling machine for Precision laboratory granulator 1000-4000mm 3 <view more>>>
13 2022 Kangnuo Stock CNC Lxck350-4000 1000mm Bed Width Four Rails Screw Milling Machine Screw Milling Machine 2000-8000mm 7 <view more>>>

Assembly Process and Quality Control
Each contact surface of the workpiece is manually scraped to ensure the precision of the machine. Line guide rail installation, using code meter accuracy test. Installation details of inclined track
Screw installation process Screw installation process Electrical system configuration box

lectrical system configuration box


Company Profile and Picture
Cangzhou Kangnuo CNC Machine Tool Manufacturing Co., Ltd. is located in Botou CNC machine tool Industrial Park, Hebei Province, the company is located only three kilometers away from the Nanpi exit of Beijing-Shanghai high-way, the traffic is very convenient. The company set r & D, design, production, sales, service in one, not only has a high-quality staff, but also has a strong product research and development team, after r & D improvement, our company now has a series of special CNC machine tools for processing spiral workpiece.Machine stable performance, high technology content, and a number of well-known enterprises to maintain long-term cooperation.
CERTIFICATIONS
CE , SGS, ****** High-quality Supplier and Made-In-China Gold Supplier.
FAQ
1:How can I choose the most suitable machines ? A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .

2:What's your main products of your company?
A: We specialized in machines ,such as CNC screw milling machine ,vacuum pump screw special CNC spiral rotor milling machine,Turning Milling Machines .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Botou CNC machine tool Industrial Park, Hebei Province China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .

6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
