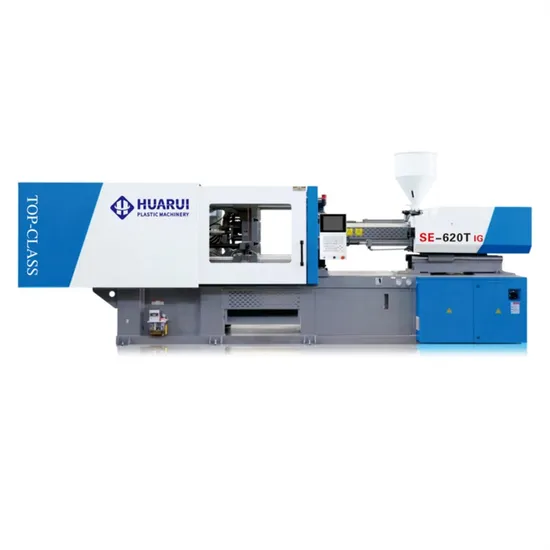

620 Ton Beer Crate Injection Molding Machinery Full Automatic Horizontal Injection for Storage Box

620 Ton Beer Crate Injection Molding Machinery Full Automatic Horizontal Injection for Storage Box

US$75,000.00-80,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SE-620T/IG
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Product Name
Plastic Injection Molding Machine
Product
Horizontal Injection Molding Machine
Injection Rate
727/810cm³/Sec
Weight
27000 Kg
Ejector Force
160 kN
Advantage
Durable
MOQ
1 PCS
Transport Package
Wooden Case
Specification
4.6*1.2*1.9m
Trademark
ENJI
Origin
Zhejiang, China
HS Code
847710109
Production Capacity
150 Pieces One Year

Product Description

Plastic Injection Molding Machine Household Chair Making Container Pet Preform Pallet Cap Blow Injection Moulding Machine
Product Parameters
Se-620T/IG Plastic Injection Molding Machine Information
Item Unit A B
Screw diameter mm 105 110
Theoretical shot volume cm³ 3897 4276
Shot weight (PS) g 5261 5773
Shot weight (PS) oz 2845 3121
Length/Diameter ratio L/D 18.8 18
Injection pressure Bar 1171 1067
Injection rate cm³/sec 1245 1366
Max.screw speed rpm 200
Clamping force KN 6200
Max.daylight mm 1320*1270
Open stroke mm 900
Space Between Tie-bars mm 920*870
Min mould dimension mm 400
Mould thickness range mm 900
Ejector force KN 160
Ejector stroke mm 230
No.of ejector pins unit 17
Max.motor power KW 61+61
System pressure MPa 175
Heater input power KW 57
Oil filling capacity L 800
Machine size M 9.7*2.2*3.1
Net weight KG 27000

SE/IV series machine advantages
Distributed architecture (n-tier);
TCP / lP efficient network connection,Internet remote control;
Synchronous cluster status browsing and parameter central control;Real-time heating curve to monitor barrel temperature changes.
Temperature and molding parameter statistics to assist in quality management.Expansion of the die storage space for mutual replication.
Scalability. providing interface with ERP.
Operator password rights management, recording of modification logs.Ease of operation and support for multiple languages.
Detailed Photos
