2024 New Granite Cutter Marble Block Slab Single Blade Bridge Type Stone Cutting Machine Price

Product Description

Product Description

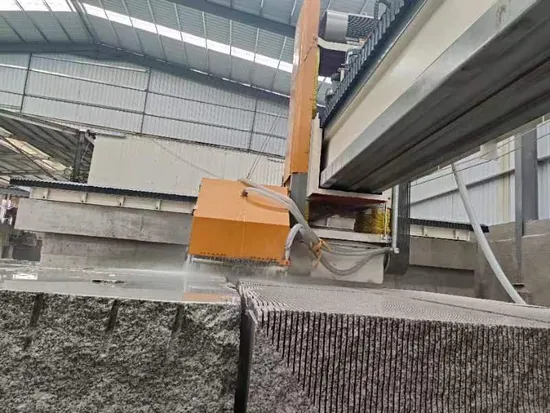

The Multi-blade Stone Block Cutting Machine FY-1650, equipped with multiple blades, is suitable for cutting granite, basalt, marble, and quartz blocks into slabs. It demonstrates excellent performance in cold regions such as Russia. This classic and practical bridge saw is capable of cutting blocks into both thin and thick slabs. It features a Siemens PLC control system and Hiwin linear guide with oil bath. Additionally, it can accommodate up to 30 thin saw blades for efficient operation.
Product Parameters

Model No.			FY-1650	FY-2250	FY-2850
Main Frame Specification	Crossbeam Type	/	DL-QS800	DL-QS800	DL-QS800
	Crossbeam Height	mm	800	800	800
	Crossbeam Length	mm	7000	7000	8500
	Crossbeam Width	mm	700	700	700
	Sidebeam Length	mm	5000	5000	5000
	Spindle Diameter	mm	120	120	120
	Middle Frame Height	mm	2550	2550	2550
Motor Power specification	Spindle Rotation	kw	75	75 or 90	75 or 90
	Lift Cylinder	kw	4	4	4
	Left and Right Travel	kw	5.5	5.5	5.5
	Front and Back Travel	kw	2.6*2	2.6*2	2.6*2
	Gross Power	kw	90	90 or 105	90 or 105
Whole Machine Datas	Gross weight	T	19.7	19.7	19.7
	Dimension (L x W x H)	mm	8500*5500*3850	8500*5500*3850	10000*5500*3850
For more details datas, pls feel free to contact us. Looking forward to get your inquiry!

Detailed Photos
Main Features 1) The Siemens smart PLC control system ensures high levels of automation performance and ease of use.
2) The machine's structure is made steady and the lifting stable through the adoption of four pillars for spindle sliding.
3) A two-slider frame structure, driven synchronized by a screw, provides high stiffness and stability.
4) The sliding system of the X and Y axes on linear guides and racks, both lubricated in an oil bath, guarantees smooth operation and high production. Machine Parts
Siemens smart PLC control system
Machine Parts
Name: 6 big strong pilllars
Use: sliding guide for spindle
Covered by fabric for preventing pollution.

Linear Guide
Brand: Hiwin
Original: Taiwan, China
Famous products, top quality use on crossbeam and carling for good performance.
Machine Parts
Name: Circle Blade Original: China Up to 32 pieces of blade can be hanged for efficient production of thin slabs.

Customers' Spot
