PVC Fiber Hose Machine for Efficient Production of Durable, High-Quality Plastic Hoses

Product Description

Product Description
PVC Fiber Hose Machine Plastic Machine
PVC fiber reinforced pipe extrusion line is mainly composed of extruder, spaying water tank, haul off and braider, etc.This kind of pipe generally has three layers, both inside and outside two layers are soft PVC plastic, the middle layer is polyester fiber reinforced net. It has the advantage of pressure resistance corrosion resistance and durable service, widely used in conveying gas, liquid and oil, etc. Currently it is also a large number of application in the garden and lawn watering. The whole line is of easy operation ,stable running, reliable performance and convenient maintenance.
Product Parameters
Technical Parameters

Model	SJ45/30	SJ65/30
PVC Hose Diameter range(mm)	6-16mm	12-50mm
Capacity(kg/h)	20-40	40-80
Installed power(kw)	35	50
Operator	1-2 persons per shift
Material of Hose	PVC Granules + Polyester thread

Main CompositionTechnical Information of PVC Garden Hose Machine

Item	Description	Data
1	Single Screw Extruder	2 sets
	Screw and Barrel Material	38CrMoAlA
	Treatment of Screw and Barrel Surface	Nitriding
	Heating Mode of Screw Barrel	Cast-aluminium Heating Circles
	Cooling Mode of Barrel	Air Blower
	Main Motor Power Speed Adjusting	ABB Frequency Inverter
	Gearbox Reducer	Hardening Gear Surface, Low Noise
2	Die Head	1 set or According to Customer's Need
3	Water Cooling Tanks	2 sets
	Tank Material	Excellent Stainless Steel
	Tank Length	2000-3000mm
	Tank Thickness	3mm
	Water Pump	2 sets
4	Fiber Winding Machine	1 set
	Motor	2.2KW
	Speed Adjusting Mode	ABB Inverter
5	Hauling off Machine	2 sets
	Motor Power	1.5kw*2
	No.of Belt	2 *2 sets
	Speed Control	A Inverter
6	Twin Position Coiler	1 set
7	Main Electrical Components	SIEMENS ,Omron, ABB, Schneider etc.

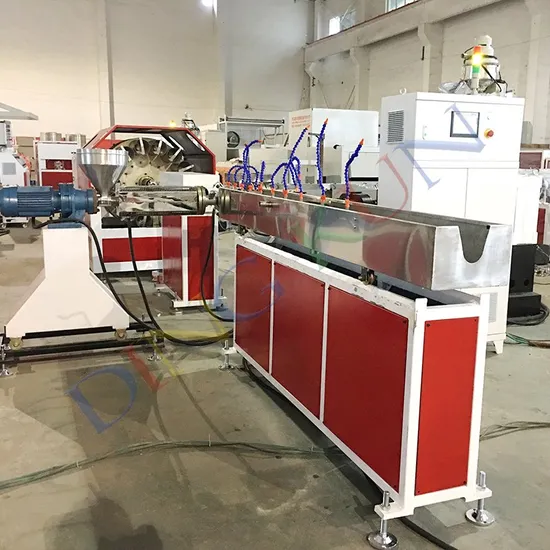

Detailed Photos
After Sales Service
Equipment installation and debugging
1. After the arrival of the equipment to the buyer's country, Seller's will be send engineer to the buyer's factory in 15 days to help installment and maintenance2. The round-trip air ticket, food and accommodation is for the buyer. Also including paid the salary of engineer, and $150 dollars per day.3. The engineer will be in buyer's factory to help the worker to use the machine, and free teach.Equipment warranty1. About the equipment, DINGKUN promised the good quality of 12 month.2. during the warranty, no purposely and artificially damage change the damaged part, we will freelmaintenance and technical services.3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
