Knee Type Milling Machine Universal High Quality CNC Vertical Price

Product Description

Product Description

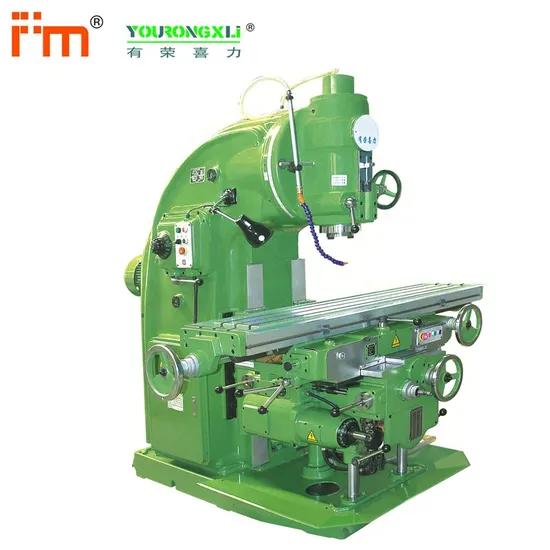

Vertical Milling Machine X5040
Detailed Photos
The machine can down milling and up milling.Table can rapid feed in cross, longitudinal, vertical directions, which can improve work efficiency.Cross and vertical feed of table is controlled by only one handle.Main drive parts and bearings are automatically lubricated by oil pump, an indicator is set to check the lubricant conveniently. Hand lubrications are set in obvious positions.
Main driving parts and spindle are mounted through rolling bearing, which can improve drive efficiency.Adjust the spindle bearing to make sure the precision of spindle.
Product Parameters

Spedification	Units	X5040
Table size	mm	1700*400
NO.T-slots		3
Width of T-slots	mm	18
Max load	kg	800
Longitudinal travel	mm	900/880
Cross travel	mm	315/300
Verttical travel	mm	385/365
Rapid feed speed	mm/min	X:2300 Y:1540 Z:770
Table feed range	mm/min	23.5-1180/15-786/8/394
Spindle speed range	r/min	30-1500
Spindle speed step	steps	18
Stroke of spindle quill	mm	85
Max. swivel angle of milling head		±45°
Distance between spindle nose and table surface	mm	115/500
Power of spindle motor	kw	11
Overall dimensions	mm	2556*2159*2298
Net weight	kg	4250

Packaging & Shipping
Delivery time: generally 60 days production time after confirmation of order.
Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet).
Delivery type: 20GP container is enough to load.

Company Profile
The company is located in the famous hometown of Mozi, Tengzhou City, Shandong Province. The company covers an area of more than 100,000 square meters, construction area of 70,000 square meters, set up Shandong Yourong Machine tool Co., LTD., Shandong XILI Machine tool Co., LTD., the existing employees 360 people, annual sales of 500 million yuan. Through cooperation with European companies, the company absorbed advanced technology, leading products to form CNC gantry machining center series, vertical, horizontal machining center series, turning and milling compound, CNC boring machine, CNC milling machine series, lifting table milling machine series, gantry milling machine series, slide milling machine series, and other brand specifications. About 70 percent of the products are exported to Germany, Poland, Italy, France, Russia, the United States and other European and American international markets. The company is a member of China Machine Tool Industry Association, passed the ISO9001 international standard quality system certification in 2002 and obtained the independent export right, passed the CE certification in 2010, was rated as the "National high-tech Enterprise" in Shandong Province in 2013, passed the Russian EAC certification in 2015. In April 2018, the International Madrid trademark was successfully registered, and more than 140 patents were authorized by the State Intellectual Property Office.

Certifications
Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong(Xili) Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
We are manufacturer not trading company.All our products passed CE, ISO9001. We also do OEM for Germany KNUTH, OPTIMUM, Austria Bernardo, America JET and so on. You can trust our quality and service.
Hope we can built long-term business relationship with you.

FAQ
Q1: What is your product name?
R1: X5040 MILLING MACHINE.
Q2: Where is your factory?
R2: Our factory is located in Tengzhou, Shandong Province.
Q3:How many milling machines can be produced per month?
R3: We can produce more than 20 units per month.
Q4: Can you provide samples?
R4:Yes, we can provide you with samples, but you need to pay for the samples and freight first.
Q5:Can you use our brand?
R5:Yes, we can make it to order.

Q6:How can I trust your company?
R6:XILI Machine Tool has more than 20 years milling machine production history. covers an area of about 50000 square meters,with 20 million CNY fixed assets and more than 300 employees.
Q7:What is the payment term?
R7: T/T, 30% advance payment before machine production, 70% balance payment before machine delivery.30% T/T advance payment, and 70% balance payment by Irrevocable LC at sight.

Q8: What's the MOQ?
R8: One set only.
