Flexible and Easily Manoeuvrable Powered Roller Expandable Conveyor for Distribution Centres

Product Description

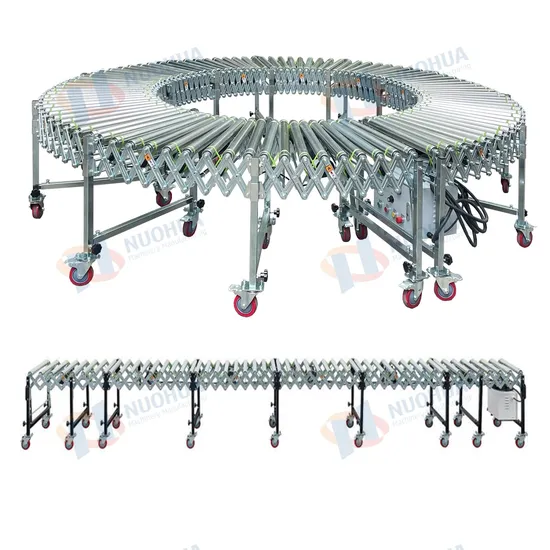

Powered Roller Expandable Conveyor
Powered Roller Expandable Conveyor is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height. Having enough power supply by one mini motor per section, it is well qualifled to intensively transport goods especially with flat bottom in the warehouse/storehouse, workshop, factory, harbor, dock, etc. In addition, it can be applied to such situations as production-packing line, temporary conveying line and goods distribution line. It
satisfies the easy, quick and efficient goods delivery.
Flexible and Easily Manoeuvrable
4 '' Castor Wheel :Thermoplastic rubber swivel casters with-locking brake Ensure unity mobility and stability.
Height adjustable:Telescope legs adjust independently for gravity flow and banked curves
50mm diameter, steel zinc plated tube with precision bearings. Rollers are driven from heavy duty polyurethane drive belts.
Reinforced, Ribbed Zinc Plated Steel Side PlatesConforms to Health and Safety StandardsAll steel electrical control cabinets, sealed to IP55 standard and mounted safey. Enables easy user access for any adjustments or maintenance. CE Compliant. Start/Stop ,speed adjust switch, power light.20.0 metres are fitted with Emergency Stops.

PRODUCT PARAMETERS

Belt	5mm high quality O ring PU belt
Roller	Dia 50*1.5mm galvanized steel roller, Max. gap 130mm center to center
Motor	90W electronic governor motor
Frame	3.5mm thickness galvanized curved join plates with better load
Leg	32X32 powder coated tube with 25X25 galvanized tube inside
Caster	Dia 125mm high quality swivel lockable polyurethane casters
Control Box	Forward/Stop/Reverse
Frequency Inverter	Delta

MODEL LIST

Model	Open Length	Close Length	Width	AdjustableHeight	VariableSpeed	Max.Load	Motor Power
	(mm)	(mm)	(mm)	(mm)	(m/min)	(kg/m²)	(w)
FPR-O4	4800	1840	600,700,800	600-800	10-20	50	360
FPR-O6	6000	2300	600,700,800	600-800	10-20	50	450
FPR-O7	7200	2760	600,700,800	600-800	10-20	50	540
FPR-O8	8400	3220	600,700,800	600-800	10-20	50	630
FPR-O9	9600	3680	600,700,800	600-800	10-20	50	720
FPR-O10	10800	4140	600,700,800	600-800	10-20	50	810
FPR-O12	12000	4600	600,700,800	600-800	10-20	50	900
FPR-O13	13200	5060	600,700,800	600-800	10-20	50	990
FPR-O14	14400	5520	600,700,800	600-800	10-20	50	1080
FPR-O15	15600	5980	600,700,800	600-800	10-20	50	1170
FPR-O16	16800	6440	600,700,800	600-800	10-20	50	1260
FPR-O18	18000	6900	600,700,800	600-800	10-20	50	1350
FPR-O19	19200	7360	600,700,800	600-800	10-20	50	1440
FPR-O20	20400	7820	600,700,800	600-800	10-20	50	1530

APPLICATIONS OF Motorized Flexible Conveyors
Perfect for vehicle loading and unloading, parcel distribution centres, machine-to-machine linking and all cross docking applications. Can be easily moved in or out of trucks for faster, safer, easier loading and unloading.
ABOUT NUOHUA
Founded in 2008 and based in Hangzhou, China, Nuohua has been in the field of conveyors for more than 15 years. We design and manufacture conveyor systems as well as a wide range of conveyor components. We've set up a distribution center in South Korea in 2008, offering OEM/ ODM flexible conveyors, roller conveyors, etc. to many distributors all over the world. We also handle conveying system projects in and outside of China, mainly cooperating with furniture companies, express enterprises, garment factories, E-commerce warehouses, etc. to offer them automation solutions. More than 10 years of expert experience makes us could offer better services and technical support to our customers from the beginning to after sales. We could say a lot more, but we prefer proving ourselves a good supplier through our competitive price, services, and quality! Q: Are you a factory or trading company?
A: We are Professional manufacturer.
Q: How to buy?
A: Clear your requirements to our sales - get quotation - discuss details - order confirm - deposit payment - drawing reconfirm -production - finished products photo and test video sent - packing - balance payment - delivery
Q: What about your delivery period?
A: Sample order or small quantity order 3-7 days, bulk production: 20 days.
Q: How can you guarantee quality?
A: 1. We have completed working system and procedures and we follow them very strictly.
2. We will do strict test running after the machine is finished.
Q: How long is the warranty of the product?
A: 1 years.
Q: What payment terms do you prefer?
A: T/T, L/C, West Union, Paypal & MoneyGram and so on.
PLEASE be free to contact us if you have any confusion about anything!
