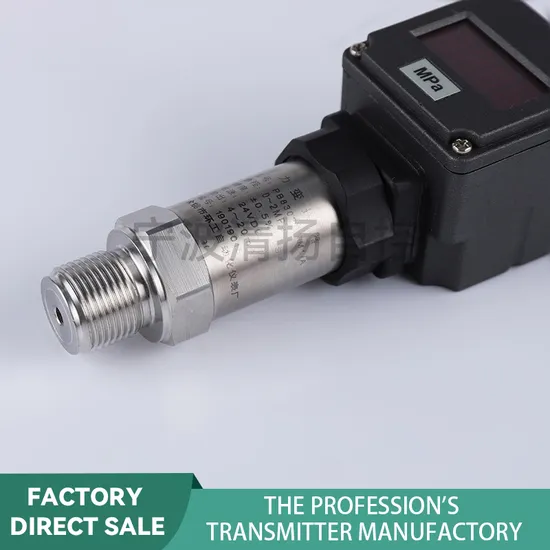

Digital Display Head (LED LCD head) Pressure Transmitter

Product Description

APB6303 series diffused pressure transmitters use the sensor elements with high accuracy, stability and reliability and measure the pressure of the liquid or gas or the level of the liquid, then change into 4 to 20mA electric signal.
Technical Parameter

Accuracy	0.5%F·S
Measuring range	-0.1…0bar to -1…0bar 0…0.1bar to 0…600bar to -1…25bar relative 0…1bar to 0…35bar absolute
Linearity	Superior to 0.25%F·S
Stability	superior to 0.25%F·S
Temperature drift	superior to ±0.75%F·S (0…50ºC)
Response time	≤10mS
Power supply	24VDC or (12VDC…36VDC optional)
Output	4…20mA (or 1…5V)
Load resistance	0~600Ω
Proof pressure	150%F·S
Ambient temp	-20…85ºC
Compensated temp	-20…85ºC
Storage temp	-45…125ºC
Process connection	M20*1.5male or 1/2 NPT male,Flange or clamp or customized
Electric connection	DIN43650-A/ISO standard junction box
Wetted parts	304 stainless steel
Diaphragm Material	Ceramic diaphragm
Housing Material	304 stainless steel or 316 stainless st

Product Features
Hirschmann junction box, wear-resistant, corrosion-resistant <10MS fast response intelligent protection (overvoltage/overcurrent/reverse connection/lightning).
High-quality diffusion silicon core, instantaneous sensing 316L isolation diaphragm precision Corrosion-resistant Multiple output signal options 4-20mA, RS485, HART.
More than 10MPa pressure or water conditions can be configured anti-damping design to strengthen the protection of the diaphragm to withstand 3 times the instantaneous pressure impact.
Laser marking, each pressure transmitter has a unique number, from production to use, from inspection to maintenance, digital records, a key query.
Multiple high and low temperature test chambers, to meet the high temperature testing, power aging, high and low temperature temperature compensation. ...
