Marine Waterfall Winch

Product Description

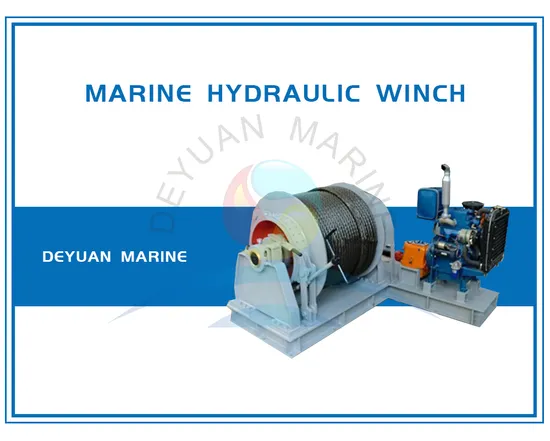

Marine Waterfall winch
The Barge Marine Winch winch is the main equipment for tugboat and tow barges, which is one of the large capacity winches from 1T-200ton.The marine winch usually with electric type or hydraulic type, with single drum or double drum. The rope capacity is from 1000m-1800m with diatmeter from 36mm~68mm. The towing winch is widely used in harbors, shipyard, port, etc.
Our factory can be customized design electric towing winch,hydraulic towing winch,diesel towing winch according to different clients' specific requirements and all towing winch have passed CCS,BV,CE,ABS,DNV ,CUTR,etc.international certificates.

Model	Working Load	Supporting Load	Nominal Speed	Drum Capacity	Dimension						Weight
	(KN)	(KN)	(m/mim)	(m)	A	B	C	D	E	H	(ton)
YK-50	500	1000	10	36×1000	5100	2900	680	1520	1200	1980	22
YK-75	750	1450	9	44×1200	6000	3050	800	1800	1380	2400	26
YK-100	1000	1800	6	52×1400	6450	3960	880	1960	1500	2800	32
YK-125	1250	2200	6	56×1500	6800	4200	920	2170	1650	2950	35
YK-150	1500	2650	5	60×1600	7080	4400	960	2360	1750	3150	40
YK-175	1750	3000	5	64×1600	7300	4660	1020	2480	1890	3350	46
YK-200	2000	3200	5	68×1800	7550	4980	1080	2600	2000	3500	52

Quality assurance and service
1. Complete and strict management, production and inspection procedures are in place to control quality and avoid errors in details
2. Design and production capability
3. Strict inspection, including incoming material inspection, packaging, etc.
4. Advanced factory equipment is guaranteed
5. Reply to design or effective solutions provided by our engineers or technical support within 24 hours during the working day.
6. Can provide professional customized services according to customer requirements
7. Timely delivery, because we have strict production planning and professional tracking process
8. Affordable price and professional service
If you are interested in our products or have any questions, please feel free to contact us for more details.
Deyuan Marine has been waiting for your contact.
