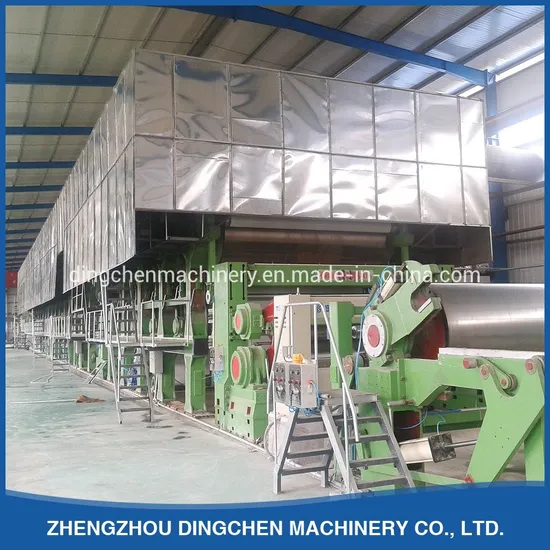

1092mm Kraft Paper High-Strength Corrugated Paper Making Machine

Product Description

1092mm Kraft Paper High-Strength Corrugated Paper Making Machine
Technical parameters
1. Output paper style: Kraft paper, cardboard;
2. Raw material: recycle paper;
3.Output paper weight: 140-260g/m2;
4. Net paper width: 1200mm;
5.Width of cylinder mould: 1450mm;
6. Capacity: 5T/D;
7 Rail gauge:1800mm;
8 Drive way: AC inverter speed, section drive;
Structure of main part:
1. Cylinder section: Ф1250mm×1450mm stainless steel cylinder mould 2 pcs, Ф350mm×1450mm couch roll 2 pcs, Ф350mm×1450mm reverse roll 1 pcs, coated by rubber, rubber hardness HSD 38ºC±2,reverse roll device.
2. Press section: Ф450mm×1450mm natural marble roll 1 pcs, Ф400mm×1450mm rubber roll 1 pcs,coated by rubber , rubber hardness HSD 90ºC±2,pneumatic loading device.
3. Dryer section:Ф1500mm×1450mm alloy dryer can 2pcs,Ф450mm×1450mm touch roll1 pcs,
Ф300mm×1450mm 2nd press roll 1 pcs, coated by rubber, Rubber hardness HSD 90ºC±2.,pneumatic loading device,2nd dryer can section with dry net device .
All Equipments:

NO.	Item	Qty(set)
1	1092mm kraft paper making machine	1
2	double layer exhausted hood of dryer can	1
3	Φ700mm axial-flow ventilator	1
4	Model-13 Roots vacuum pump	1
5	cylinder vat	2
6	Suction box	2
7	3 m3 high consistency hydrapulper	1
8	1.8m2 High frequency vibration screen	1
9	Φ380mm double disc pulp refiner	1
10	6 inch pulp pump	2
11	4 inch pulp pump	4
12	Φ700mmThruster	2
13	Model-600 sand remover	1group
14	IS125-100sand removing pump	1
15	8 m3 cylinder thickener	1
16	1092mm winding machine	1
17	1092mm rewinding machine	1
18	inverter control cabinet	1
19	1 ton boiler(burn coal)	1
