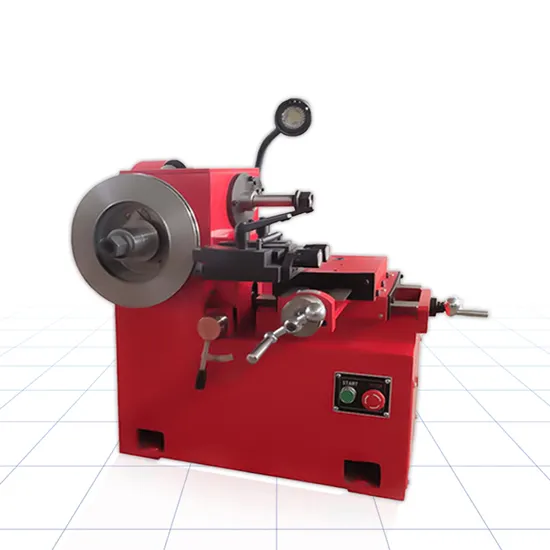

Conventional Metalworking Metal Combination Disc Drum Brake Lathe Machine

Product Description

Product Description
Product Parameters
Main specifications

Model	C9335A	Motor	110v/220v/380v 50/60Hz
Disc Diameter	180mm-350mm	Power	1.1kw
Drum Diameter	180mm-350mm	Spindle Revolution	75,130RPM
Biggest Travel	100mm	Total Weight	260KG
Feeding	0.16mm/r	Dimensions	850x620x750mm

Features
FEATURE
1. C9335A adopts the powerful AC motor of 1.1Kw, which can meet the demanding requirement of industrial motion.

2. Independent operation of cutting disc and drum

3. It has two grades of revolution speeds to choose, which will meet the needs of cutting discs and drums of different diameters

4. Specially-designed taper cones for both discs and drums, which will ensure the cutting precision.

5. The machine is equipped with a twin cutter, which will achieve simultaneously cutting both sides of the disc and increase the cutting efficiency.

6. The machine has the cast iron body of small size and solid structure, covering less space.

7. The Simple ergonomic controls are designed for minimal operator movement, reducing the operation and easy to learn.

8. The machine is equipped with lighting and ensure the working area well-lighted.

9. The machine is equipped with a limit switch. The machine will stop automatically when the slide carriage touches the limit switch during auto-running.

10. The electrical device adopts the products of Delixi brand and ensures the product quality.
Parts List

Name	Quantity
Tool Box	1
Twin Cutter	1
Twin Cutter Holder	1
Cutting Tip Screw	2
Triangle Cutting Tip	2
Cutting Tip Wench	1
Boring Cutter	1
Boring Bar	1
Taper Cone (51.5x71mm)	1
Taper Cone (67x87mm)	1
Taper Cone (84x110.2mm)	1
Taper Cone (100.5x126.5mm)	1
Round Taper Cone	2
Round Taper Cone	2
Step Bushing	2
Bushing	1
Bushing	1
Pressing Sleeve	1
Pressing Sleeve	1

Company Profile
Our Factory:
Yantai Lift Equipment Co., Ltd. is a joint-stock enterprise specializing in the production and sales of wheel alignment, car lift, tire changer, wheel balancer and other garage equipment.The company has four major production bases: Wheel alignment, car lift, tire changer and wheel balancer. The company always adheres to independent research and development and independent production. Advanced intelligent equipment and scientific management mode provide its excellent quality assure.Wheel alignments include car wheel alignments, truck wheel alignments, and car lifts include scissor car lifts, single-post car lifts, two-post car lifts, four-post car lifts, and motorcycle lifts.Our products have been exported to Australia, Thailand, Malaysia, Indonesia, France, Spain, Turkey, Jordan, Mexico and other countries.Our products: The perfect combination of high quality and high cost performance.Our mission: High-quality products serve the automotive aftermarket in China and the world.We are becoming a modern and competitive company, a leader in the field of automotive service equipment.
Our Customer:
Trade Info

Trade Terms	FOB / CFR
MOQ	3UNITS (USD200.00 extrally charged for LCL shipment to cover the inland freight + custom declaration fee)
Port	QINGDAO
Shipment	BY SEA /AIR
Payment Terms	T/T
Payment condition	30% prepayment,balanced before shipment.
Supply Capability	1000units/month
Sample Availability	Yes ,But all freight(Inland freight +seafreight) covered by buyer
Sample Time	5-10days(depends on whether have in stock)
Lead Time	25-30days(Rush season 5-10days longer)
Packing	Metal frame&Carton
Delivery time	30-45days shipping time (depends on destination position)
Service	1% free parts;1year warranty after port of destination
